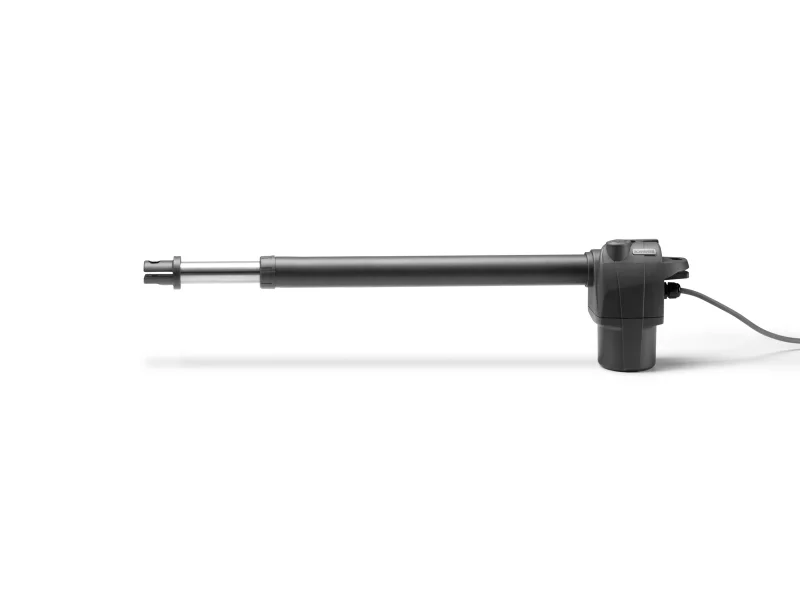

BENINCA - RIGHT IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR 24V FOR SWING GATES, UP TO 3,5 MT
- 24 VDC IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR
FOR INTENSIVE USE
- IDEAL FOR AUTOMATION DEVICES FOR WROUGHT IRON GATES
- SUITABLE FOR A QUICK AND EASY INSTALLATION
- WORM SCREW PROTECTED BY A SCRAPER RING AND STAINLESS STEEL STEM, SUITABLE FOR DUSTY OR SANDY ENVIRONMENTS, OR PLACES WITH AGGRESSIVE WEATHER CONDITIONS
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC SENSOR
- PREPARED FOR BATTERY BACK-UP SYSTEM
GEARED MOTOR FOR SWING GATES
BILL4024 DX 9592562
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 24 Vdc
MAX CURRENT: 5 A
MAXIMUM THRUST: 2000 N
OPENING TIME: 15”
WORKING CYCLE: intensive use
STANDARD STROKE: 400 mm
MAXIMUM STROKE: 420 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C
