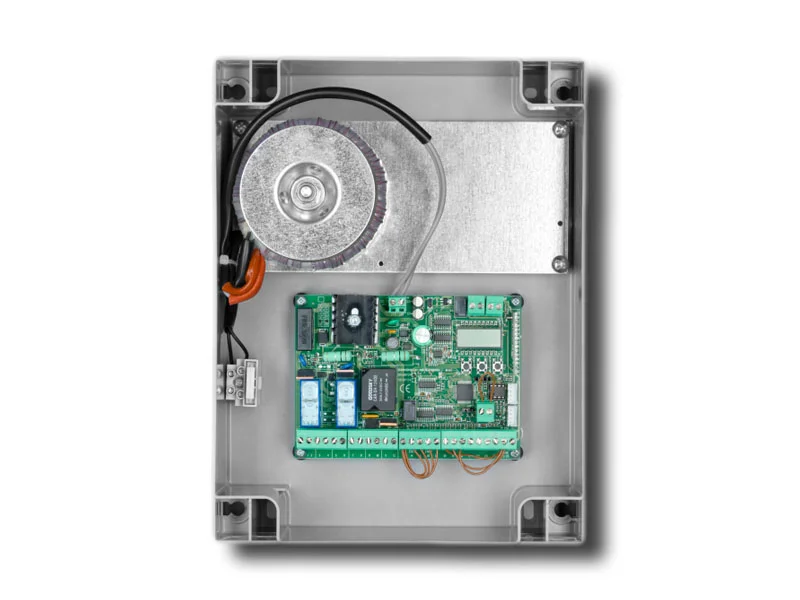

BENINCA - CONTROL UNITS FOR 1 O 2 ACTUATORS FOR SWING GATES, OPPOSED SLIDING GATES, AND INDUSTRIAL FOLDING DOORS WITH A MAXIMUM OF 2 SECTIONS
- INTEGRATED LCD DISPLAY
- INTEGRATED 433.92 MHZ 64-CODE RECEIVER WITH 3 ENCODING SYSTEMS (ADVANCED ROLLING CODE, ROLLING CODE, FIXED CODE)
- REMOVABLE TERMINAL BOARDS
- SEPARATE LIMIT SWITCH INPUTS FOR EACH MOTOR
- OPEN, CLOSE, AND PEDESTRIAN INPUTS
- PHOTOCELL INPUTS IN OPENING-CLOSING AND IN CLOSING PHASES
- INPUT FOR N.C. OR 8K2 SENSITIVE EDGE
- OUTPUT FOR ELECTRIC LOCK 12 VDC
- OUTPUT FOR CONFIGURATION AS GATE OPEN INDICATOR, SERVICE LIGHT, SECOND RADIO CHANNEL AND PHOTOCELL TESTING
- AUTOSETTING OF OPERATING PARAMETERS
- SEPARATE ELECTRONIC TORQUE ADJUSTMENT FOR EACH MOTOR
- ANTI-CRUSHING SAFETY THROUGH AMPEROMETRIC DETECTION AND ENCODER MANAGEMENT
- SEPARATE ADJUSTABLE SLOWDOWNS FOR EACH MOTOR IN OPENING AND CLOSING PHASES
- ADVANTOUCH SYSTEM TO CONFIGURE PARAMETERS AND MANAGE RADIO
TRANSMITTERS
- NUMBER OF MANEUVERS
- PROGRAMMING ACCESS PASSWORD
- MAINTENANCE WARNING
CONTROL UNIT POWER SUPPLY: 230 Vac – 50/60 Hz
MOTORS POWER SUPPLY: 24 Vdc 120W + 120W
CONTROL UNIT
BRAINY24 9176224
