BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR, LINEAR WORM SCREWS, FOR SWING GATES UP TO 3 MT
- FOR INTENSIVE USE
- EQUIPPED WITH ENCODER, THE ENCODER DEVICE ENSURES MAXIMUM SAFETY AND PRECISION IN THE GATE MOVING PHASES
- AMPEROMETRIC SENSOR OBSTACLE DETECTION SYSTEM TO PREVENT CRUSHING
- OPTIONAL BATTERY POWERED OPERATION

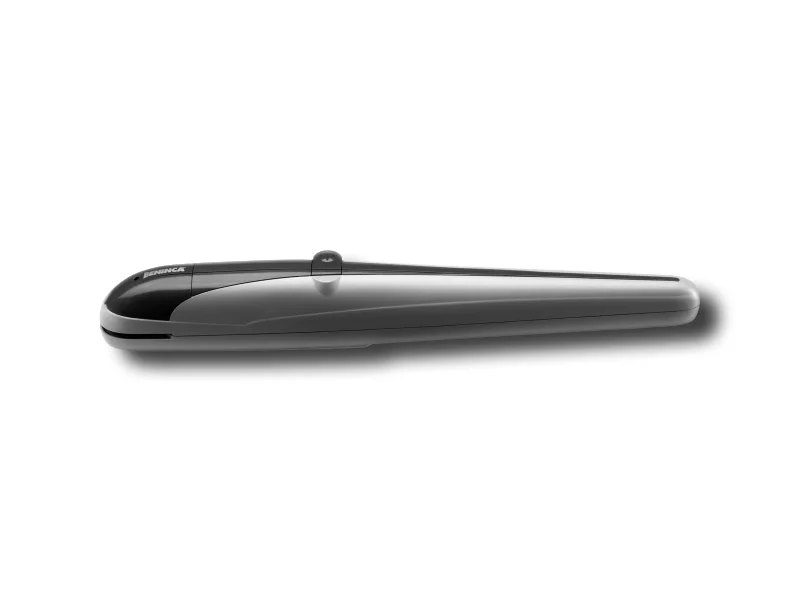

IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR
BOB3024E 9591447
TECHNICAL DETAILS:
Power supply: 230 Vac (50-60Hz)
Motor supply: 24 Vdc
Max absorbed current: 5,5 A
Max Thrust: 1800 N
Opening time: 9” - 21"
Duty cycle: intensive use
Standard stroke: 270 mm
Max stroke: 325 mm
Protection level: IP44
Encoder: YES
Operating temperature: -20°C /+50°C
