VORTICE - WHITE NORDIK CEILING FAN WITHOUT LIGHT AND WITHOUT CONTROL UNIT, DIAMETER 140
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• NOMINAL DIAMETER OF BLADES 1400 MM.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW: 13,680 M3/H.
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.

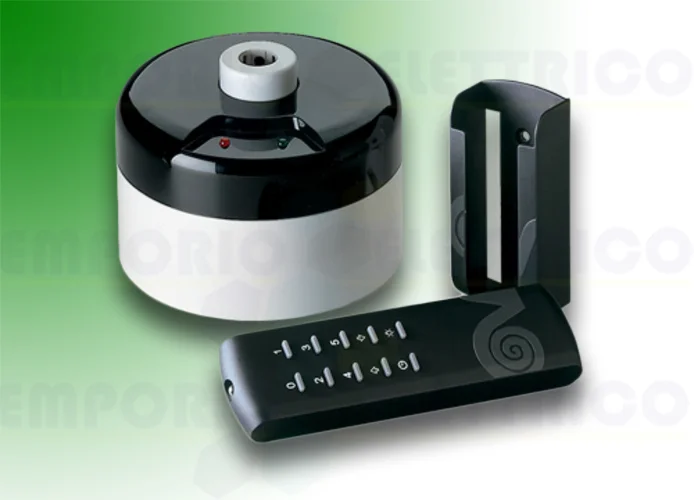

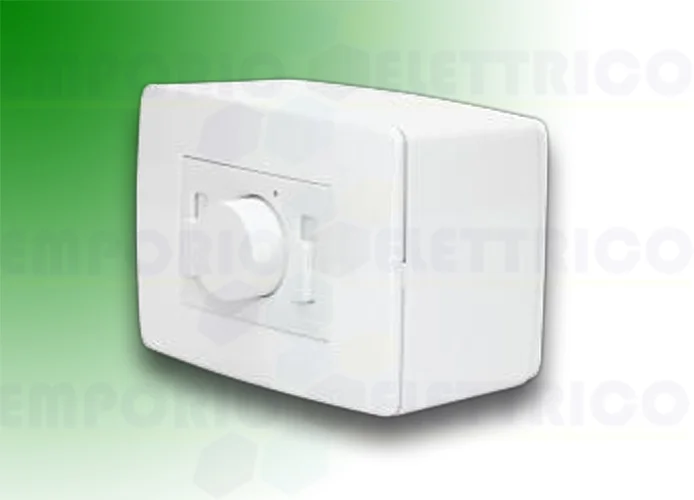

• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)

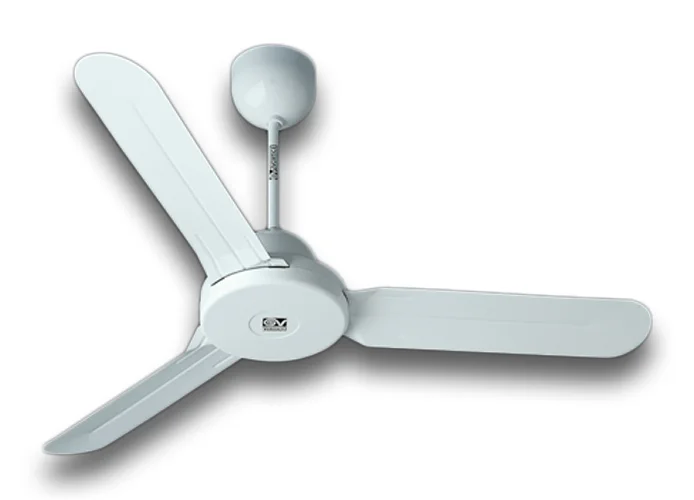

THE IMAGE IS RELATED TO THE 90 cm DIAMETER MODEL
WHITE IS 140/56" WITHOUT LIGHT 61360
ABSORBED CURRENT MAX (A): 0,33
ABSORBED POWER MAX (W): 70
BLADES DIAMETER: 140
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 5,6
AIRFLOW SPEED AT MAX SPEED (M/S): 1,72
DELIVERY MAX (M³/H): 13680
DELIVERY MAX (M³/MIN): 228,00
GIRI MINUTO: 215
RPM: 215
SERVICE VALUE (M³/MIN)/W: 3,257
SOUND POWER LEVEL LW [DB(A)]: 52,1
SIZE A (MM): Ø 1422
SIZE B (MM): Ø 230
SIZE C (MM): 495
