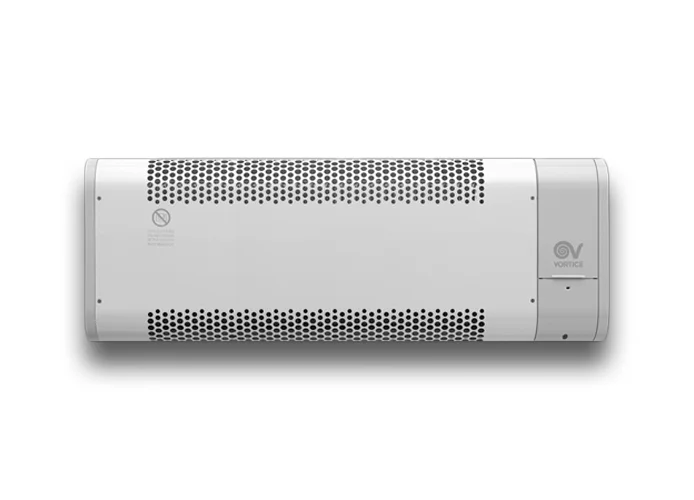

VORTICE - WALL THERMOVENTILATOR
• FRONT AND REAR PANELS, TOP AND BOTTOM GRILLES MADE OF STEEL WITH SCRATCH-RESISTANT PAINT FINISH, COLOUR GREY.
• ENDS AND SECTION HOUSING CONTROLS MADE OF SELF-EXTINGUISHING PLASTIC RATED V0, COLOUR GREY.
• TANGENTIAL FAN UNIT.
• METAL-CLAD HEATING ELEMENT WITH ALUMINIUM HEAT SINK, RATED 500/1000/1500 W.
• THERMAL OVERLOAD CUTOUT WITH MANUAL RESET.
• LUMINOUS SWITCHES FOR ON/OFF CONTROL AND SELECTION OF HEAT OUTPUT SETTINGS.
• ADJUSTABLE DIGITAL DAILY/WEEKLY TIMER FOR PROGRAMMING ON AND OFF PERIODS
• MANUALLY ADJUSTABLE ROOM THERMOSTAT WITH ANTIFREEZE FUNCTION GUARANTEEING AUTOMATIC ACTIVATION OF THE HEATER WHENEVER AMBIENT TEMPERATURE DROPS BELOW 5 °C.
• THE PRODUCT CAN BE CONNECTED TO AN EXTERNAL PROGRAMMABLE THERMOSTAT
• IMQ SAFETY CERTIFICATION.
MICRORAPID TIMER 1500-VO 70663
ABSORBED CURRENT MAX (A): 6,5
ABSORBED POWER MAX (W): 1500
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: X4
VOLTAGE (V): 230
WEIGHT (KG): 3,8
SIZE A (MM): 573
SIZE B (MM): 258
SIZE C (MM): 109
