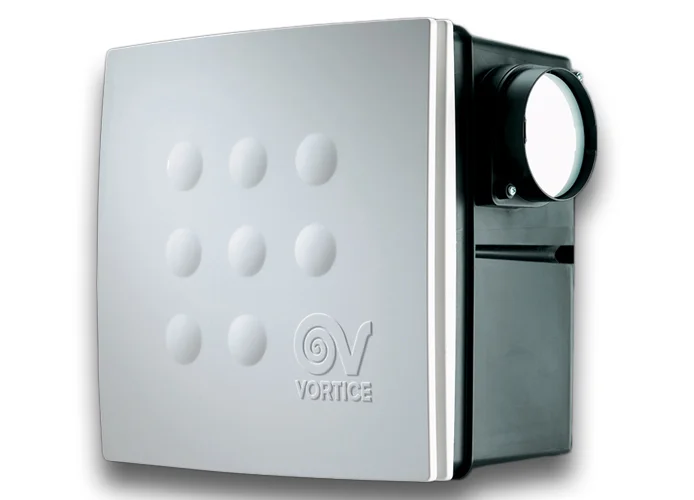

vortice vort quadro micro 100 i timer recessed centrifugal aspirator 12018

SKU: 12018

€287.00  €255.43VAT INCLUDED

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE,  VORT QUADRO TIMER

• MATERIAL USED FOR PARTS NOT RECESSED INTO WALL: WHITE ABS PLASTIC.
• MATERIAL USED FOR PARTS RECESSED INTO WALL: TALC-FILLED BLACK PLASTIC (PP) GIVING ADDED STRENGTH.
• NOMINAL DIAMETER 100 MM.
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER, WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).

VORT QUADRO MICRO 100 I TIMER  12018

ABSORBED POWER 1ST SPEED (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,12
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,10
MAX. ABSORBED POWER AT MAX SPEED (W): 27
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 73,5
VOLTAGE (V): 220-240
WEIGHT (KG): 1,93
DELIVERY 1ST SPEED (L/S): 21
DELIVERY 1ST SPEED (M³/H): 75
MAX DELIVERY AT MAX SPEED (L/S): 31
MAX DELIVERY AT MAX SPEED (M³/H): 110
PRESSURE - 1ST SPEED (MMH20): 20
PRESSURE - 1ST SPEED (PA): 196
PRESSURE MAX - MAX SPEED (MMH20): 25
PRESSURE MAX - MAX SPEED (PA): 245
RPM MAX: 1450
RPM MIN: 1010
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 34,3
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 26,3
SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M - MAX SPEED: 33,5
SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M - MIN SPEED: 25,9


SIZE A (MM): 258
SIZE C (MM): 34
SIZE D (MM): 92
SIZE E (MM): 90
SIZE F (MM): 64
SIZE G (MM): 60
SIZE H (MM): 118
SIZE L (MM): 26

  • Brand: VORTICE
