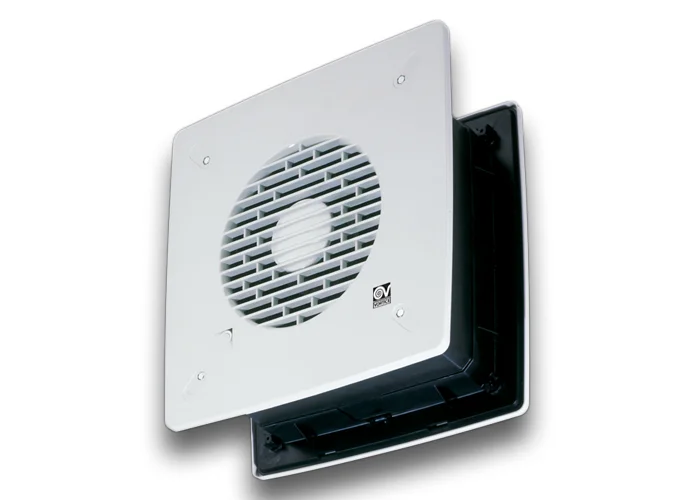

vortice vario ll 230/9" reversible automatic recessed helical aspirator 12456

SKU: 12456

€636.00  €566.04VAT INCLUDED

VORTICE - HELICAL ASPIRATOR FOR WALL MOUNTING, RECESSED VARIO LONG LIFE 30000h SERIE

• MODEL DESIGNED FOR INSTALLATION RECESSED INTO WALL.
• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).
• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)
• NOMINAL DIAMETER 230 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

VARIO 230/9" REVERSIBLE AUTOMATIC LL  12456

ABSORBED CURRENT MAX (A): 0,19
ABSORBED POWER MAX (W): 35
FREQUENCY (HZ): 50-60
INLET: AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 40
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50
Ø DISCHARGE HOLE (MM): 335 ÷ 340
VOLTAGE (V): 220-240
WEIGHT (KG): 3,88
DELIVERY MAX - EXTRACT (L/S): 188,9
DELIVERY MAX - EXTRACT (M3/H):680
DELIVERY MAX - INTAKE (L/S): 97,2
DELIVERY MAX - INTAKE (M3/H): 350
DELIVERY MAX (M³/H): 680
RPM: 1160
RPM - EXHAUST: 1160
RPM - SUPPLY: 1260
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 45,3


Ø WALL HOLE: 335/340
SIZE A (MM): 400
SIZE B (MM): 400
SIZE C (MM): 11
SIZE D (MM): 180

  • Brand: VORTICE
