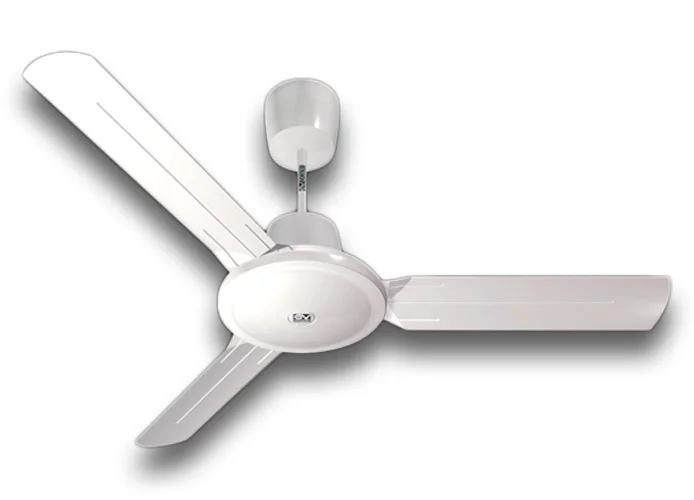

VORTICE - REVERSIBLE NORDIK EVOLUTION CEILING FAN, DIAMETER 120/48" WHITE
• NOMINAL DIAMETER OF BLADES 1200 MM
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE.
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT THERMOPLASTIC RESIN (PP).
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.
• MAXIMUM AIR FLOW 13810 M3/H
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE.
• STEEL CEILING ROD WITH SCRATCH-RESISTANT POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM.
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• FACTORY-PREPARED TO ACCEPT 2 SPECIFIC OPTIONAL LIGHT KITS:
- WITH LAMP RATED 105 W MAX, E27 SCREW FITTING
- WITH 2X15 W MAX ENERGY SAVING LAMP, E27 SCREW FITTING (MANDATORY IN EU).
• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5TR REMOTE CONTROL (OPTIONAL)
WHITE REVERSIBLE NORDIK EVOLUTION 120/48" 61751
ABSORBED CURRENT MAX (A): 0,34
ABSORBED POWER MAX (W): 70
BLADES DIAMETER: 1284
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 7,1
AIRFLOW SPEED AT MAX SPEED (M/S): 2,36
DELIVERY MAX (M³/H): 13810
DELIVERY MAX (M³/MIN): 230,17
RPM: 198
SERVICE VALUE (M³/MIN)/W: 3,288
SOUND POWER LEVEL LW [DB(A)]: 49,1
SIZE A (MM): 980
SIZE B (MM): 298
SIZE C (MM): 495
SIZE D (MM): 229
SIZE E (MM): 724
SIZE F (MM): 291
SIZE G (MM): 145
SIZE H (MM): 640
SIZE L (MM): 291
