vortice punto m helical aspirator 150/6" timer 11411

SKU: 11411

€212.71VAT INCLUDED

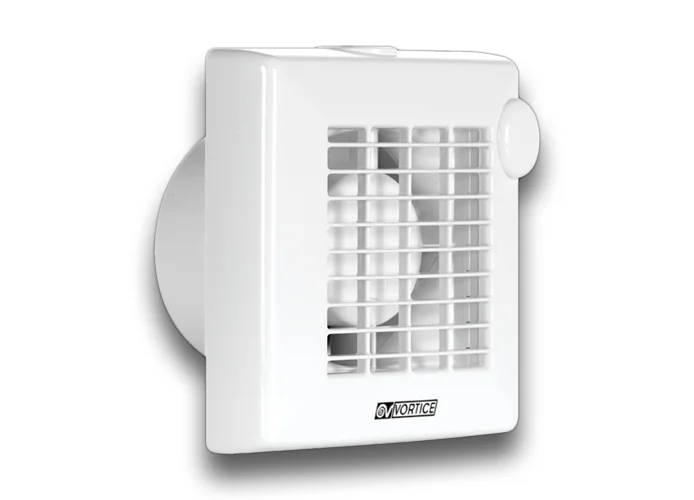

VORTICE - WALL HELICAL ASPIRATOR, PUNTO SERIES

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 150 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 335 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

PUNTO Serie M 150/6" TIMER  11411

ABSORBED CURRENT MAX (A): 0,15
ABSORBED POWER MAX (W): 30
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 160
Ø DISCHARGE HOLE (MM): 156
VOLTAGE (V): 220-240
WEIGHT (KG): 1,1
DELIVERY MAX (L/S): 93,1
DELIVERY MAX (M³/H): 335
PRESSURE MAX (MMH2O): 6
PRESSURE MAX (PA): 59
RPM: 2100
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 46


SIZE A (MM): 214
SIZE B (MM): 215
SIZE C (MM): 117
SIZE D (MM): 47
SIZE E (MM): Ø 156

  • Brand: VORTICE
