vortice punto ll m helical aspirator 120/5" 11302

SKU: 11302

€113.92VAT INCLUDED

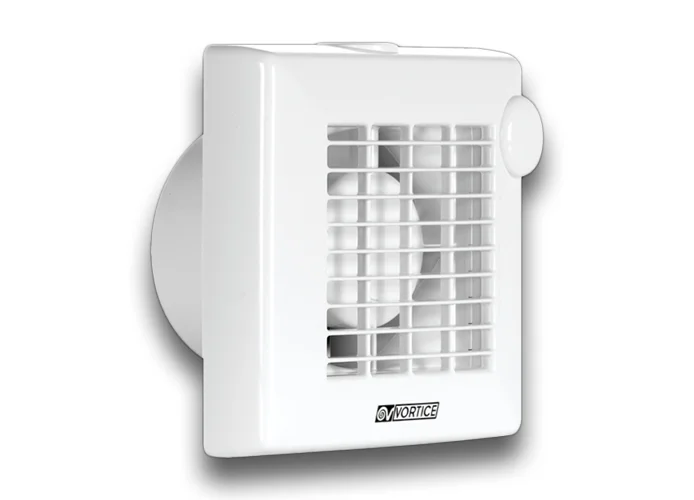

VORTICE - WALL HELICAL ASPIRATOR
SERIES: PUNTO LONG LIFE 30000h

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS (LL),COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 175 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• EQUIPPED WITH SYSTEM BY WHICH THE LOUVRES OF THE GRILLE ARE OPENED AND CLOSED AUTOMATICALLY.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

PUNTO LL Serie M 120/5"  11302

ABSORBED CURRENT MAX (A): 0,12
ABSORBED POWER MAX (W): 20
FREQUENCY (HZ): 50
INLET: AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)50
NOMINAL DIAMETER (MM)120
Ø DISCHARGE HOLE (MM)119
VOLTAGE (V)220-240
WEIGHT (KG)0,8
DELIVERY MAX (L/S)48,6
DELIVERY MAX (M³/H)175
PRESSURE MAX (MMH2O)4,5
PRESSURE MAX (PA)44
RPM2100
SOUND PRESSURE LEVEL LP [DB (A)] 3M39,5


SIZE A (MM): 179
SIZE B (MM): 181
SIZE C (MM): 110
SIZE D (MM): 47
SIZE E (MM): Ø 119



  • Brand: VORTICE
