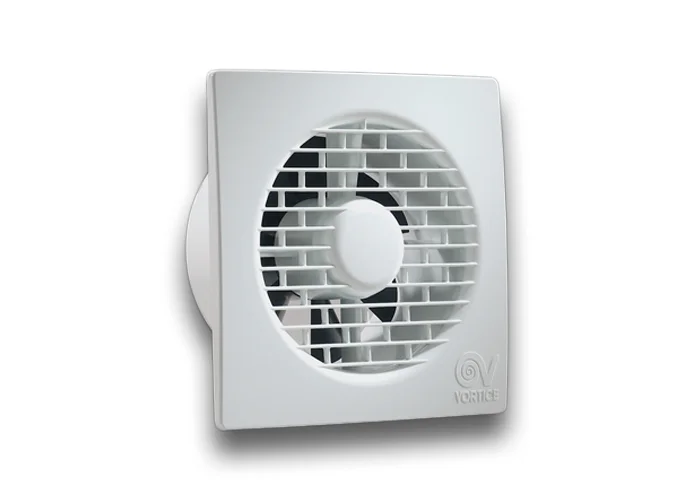

VORTICE - WALL HELICAL ASPIRATOR, PUNTO FILO SERIES
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 90 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 65 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.
PUNTO FILO MF 90/3,5" TIMER 11126
ABSORBED CURRENT MAX (A): 0,08
ABSORBED POWER MAX (W): 15
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 90
Ø DISCHARGE HOLE (MM): 92,5
VOLTAGE (V): 220-240
WEIGHT (KG): 0,50
DELIVERY MAX (L/S): 18
DELIVERY MAX (M³/H): 65
GIRI_MINUTO: 2500
PRESSURE MAX (MMH2O): 2,5
PRESSURE MAX (PA): 25
RPM: 2500
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 28,8
SIZE A (MM): 159
SIZE B (MM): 17
SIZE C (MM): 77
SIZE D (MM): 92,5
