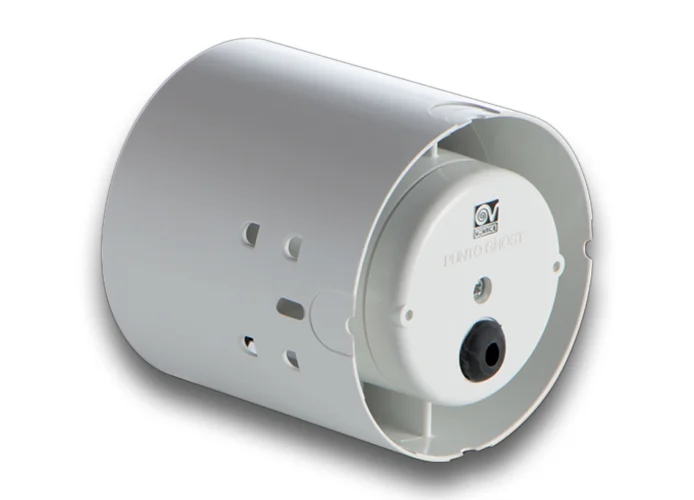

VORTICE - WALL HELICAL ASPIRATOR, PUNTO GHOST SERIES
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 90 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 65 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLERS.
PUNTO GHOST Serie MG 90/3,5" 11110
ABSORBED CURRENT MAX (A): 0,10
ABSORBED POWER MAX (W): 18
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-240
WEIGHT (KG): 0,45
DELIVERY MAX (L/S): 18
DELIVERY MAX (M³/H): 65
PRESSURE MAX (MMH2O): 2,1
PRESSURE MAX (PA): 21
RPM: 2450
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 38
SIZE A (MM): Ø 92,5
SIZE B (MM): 92
SIZE C (MM): 89
