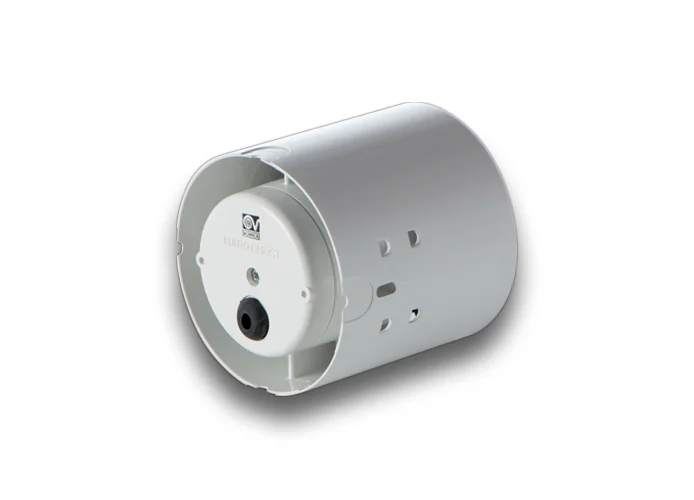

VORTICE - WALL HELICAL ASPIRATOR, PUNTO GHOST SERIES
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 160 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLERS.
PUNTO GHOST Serie MG 120/5" 11116
ABSORBED CURRENT MAX (A): 0,12
ABSORBED POWER MAX (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 120
VOLTAGE (V): 220-240
WEIGHT (KG): 0,56
DELIVERY MAX (L/S): 44
DELIVERY MAX (M³/H): 160
PRESSURE MAX (MMH2O): 4,5
PRESSURE MAX (PA): 44
RPM: 2250
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 43
SIZE A (MM): Ø 119
SIZE B (MM): 103
SIZE C (MM): 100
