vortice helical aspirator punto filo mf 100/4" timer 11127

SKU: 11127

€117.48VAT INCLUDED

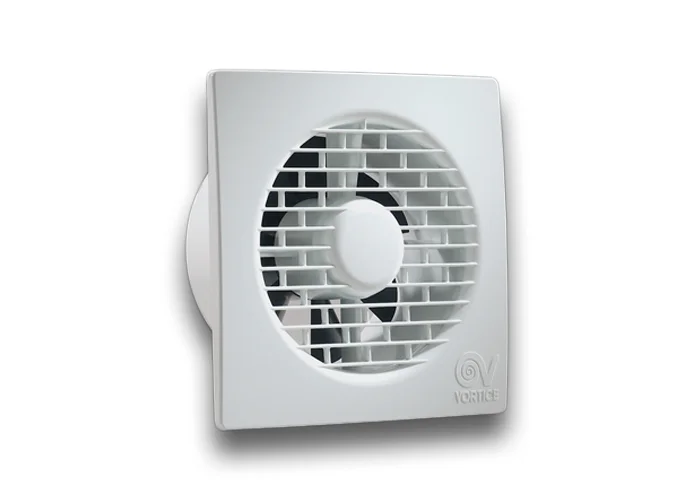

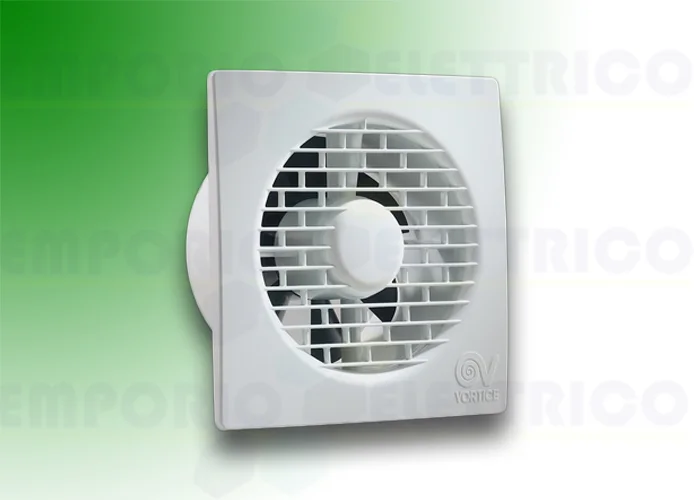

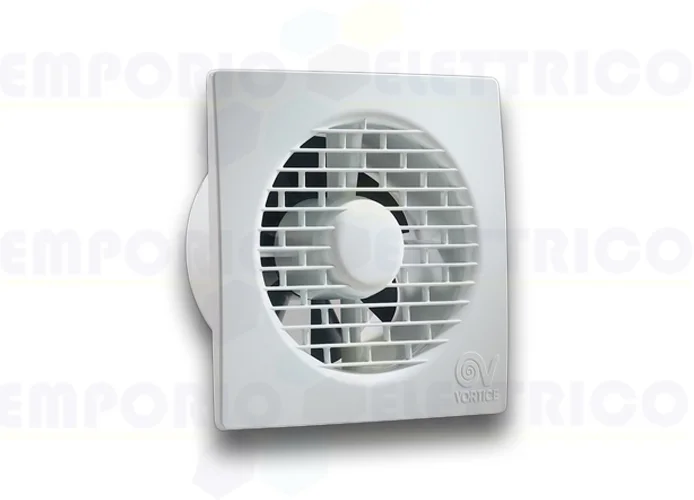

VORTICE - WALL HELICAL ASPIRATOR, PUNTO FILO SERIES

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 85 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.

PUNTO FILO Serie MF 100/4" TIMER   11127

ABSORBED CURRENT MAX (A): 0,09
ABSORBED POWER MAX (W): 15
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 98
VOLTAGE (V): 220-240
WEIGHT (KG): 0,51
DELIVERY MAX (L/S): 24
DELIVERY MAX (M³/H): 85
PRESSURE MAX (MMH2O): 3
PRESSURE MAX (PA): 29
RPM: 2400
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 31


SIZE A (MM): 159
SIZE B (MM): 17
SIZE C (MM): 77
SIZE D (MM): 98

  • Brand: VORTICE
