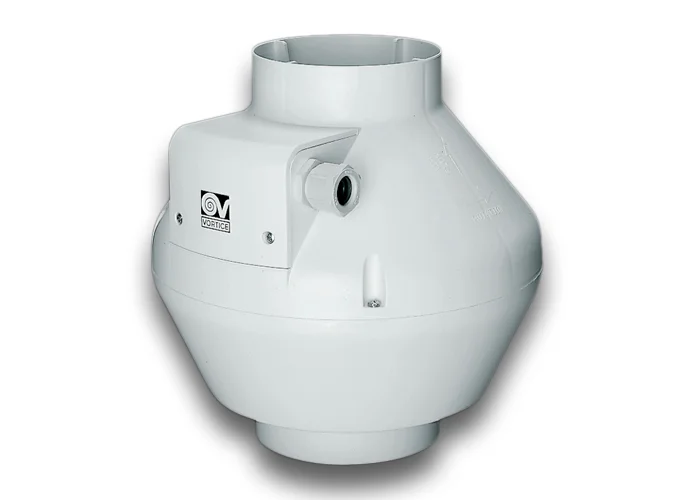

VORTICE - 16041 AXIAL CENTRIFUGAL ASPIRATOR, MADE IN SELF-EXTINGUISHING VO RESIN
• MATERIAL: SELF-EXTINGUISHING PP THERMOPLASTIC RESIN, RATED V0.
• NOMINAL DIAMETER 315 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.
CA 315-VO E 16041 (EX 16065)
ABSORBED CURRENT MAX (A): 0,54
ABSORBED POWER 1ST SPEED (W): 48
ABSORBED POWER MAX (W): 120
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: 44
MAX ABSORBED POWER AT 60HZ (W): 185
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 55
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0.48
NOMINAL DIAMETER (MM): 315
VOLTAGE (V): 220-240
WEIGHT (KG): 5,5
DELIVERY 1ST SPEED (L/S): 146.3
DELIVERY 1ST SPEED (M³/H): 527
MAX DELIVERY AT MAX SPEED (L/S): 305.5
MAX DELIVERY AT MAX SPEED (M³/H): 1100
PRESSURE - 1ST SPEED (MMH20): 27.5
PRESSURE - 1ST SPEED (PA): 270
PRESSURE MAX - MAX SPEED (MMH20): 56.6
PRESSURE MAX - MAX SPEED (PA): 554.7
RPM MAX: 2640
RPM MIN: 1280
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 54
SIZE A (MM): 400
SIZE B (MM): 340
SIZE C (MM): 400
SIZE D (MM): 312
SIZE E (MM): 75
SIZE F (MM): 40
SIZE G (MM): 438
