vortice centrifugal aspirator ca-md ca 125 md 16151

SKU: 16151

€269.67VAT INCLUDED

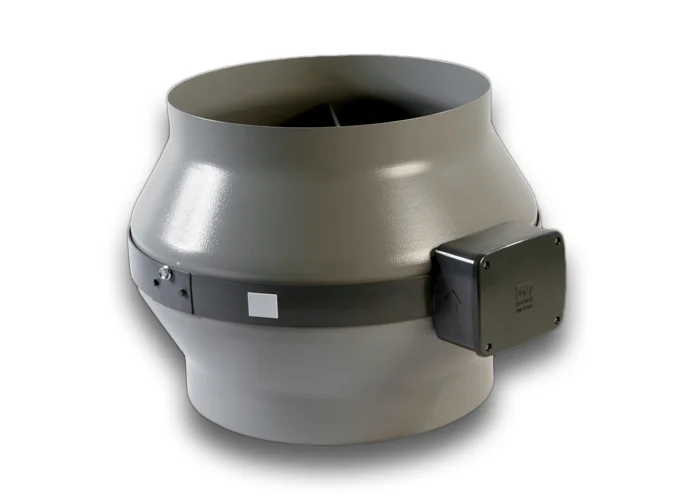

VORTICE - 16151 STEEL AXIAL CENTRIFUGAL ASPIRATOR

• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 125 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.

CA 125 MD    16151

ABSORBED POWER 1ST SPEED (W): 13
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 44
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,22
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,06
MAX. ABSORBED POWER AT MAX SPEED (W): 51
NOMINAL DIAMETER (MM): 125
VOLTAGE (V): 220-240
WEIGHT (KG): 3,00
DELIVERY 1ST SPEED (L/S): 34.7
DELIVERY 1ST SPEED (M³/H): 125
MAX DELIVERY AT MAX SPEED (L/S): 100
MAX DELIVERY AT MAX SPEED (M³/H): 360
PRESSURE - 1ST SPEED (MMH20): 11.9
PRESSURE - 1ST SPEED (PA): 117
PRESSURE MAX - MAX SPEED (MMH20): 35,7
PRESSURE MAX - MAX SPEED (PA): 350
RPM MAX: 2300
RPM MIN: 850
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 45.9


SIZE A (MM): 255
SIZE B (MM): 239
SIZE C (MM): 330
SIZE D (MM): 122
SIZE E (MM): 23
SIZE F (MM): 23

  • Brand: VORTICE
