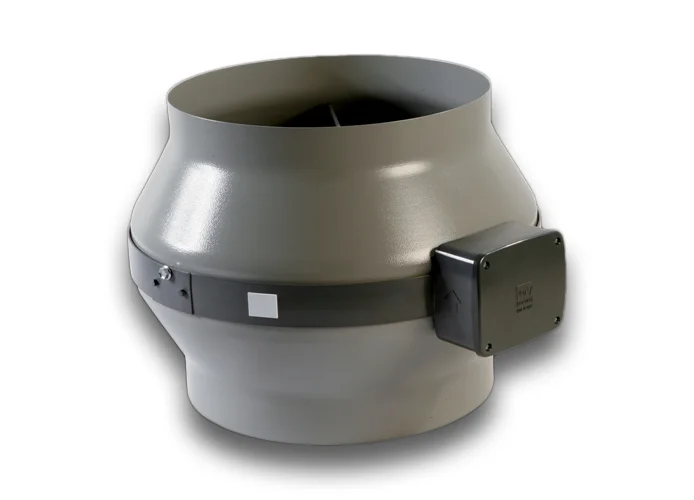

VORTICE - 16167 STEEL AXIAL CENTRIFUGAL ASPIRATOR
• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 315 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• EXTERNAL ROTOR AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.
CA 315 MD E 16167 (EX 16157)
ABSORBED POWER 1ST SPEED (W): 58
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: 44
MAX ABSORBED POWER AT 60HZ (W): 175
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,53
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,51
MAX. ABSORBED POWER AT MAX SPEED (W): 120
NOMINAL DIAMETER (MM): 315
VOLTAGE (V): 220-240
WEIGHT (KG): 11
DELIVERY 1ST SPEED (L/S): 172
DELIVERY 1ST SPEED (M³/H): 620
MAX DELIVERY AT MAX SPEED (L/S): 300
MAX DELIVERY AT MAX SPEED (M³/H): 1080
PRESSURE - 1ST SPEED (MMH20): 43
PRESSURE - 1ST SPEED (PA): 422
PRESSURE MAX - MAX SPEED (MMH20): 58
PRESSURE MAX - MAX SPEED (PA): 569
RPM MAX: 2660
RPM MIN: 1560
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 52,3
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 41,8
SIZE A (MM): 406
SIZE B (MM): 306
SIZE C (MM): 488
SIZE D (MM): 312
SIZE E (MM): 21
SIZE F (MM): 30
