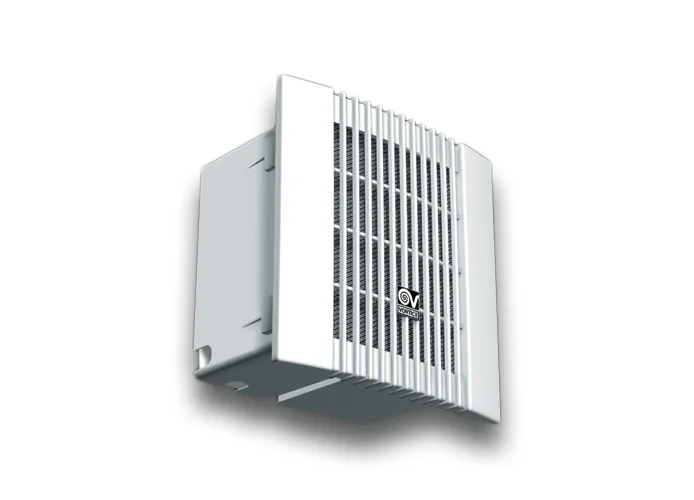

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE, ARIETT LONG LIFE 30000h
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER: 100 MM
• MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW, REAR: 80 M3/H
• MAXIMUM AIR FLOW, SIDE: 70 M3/H
• VERTICAL OUTLET PORT SUPPLIED AS STANDARD WITH SPIGOT POSITIONABLE HORIZONTALLY BY MEANS OF DIVERTER.
• REAR OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
ARIETT LL I 12010
ABSORBED CURRENT MAX (A): 0,13
ABSORBED POWER MAX (W): 19
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
MAX. ABSORBED POWER AT MAX SPEED (W): 19
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 96,5
VOLTAGE (V): 230
WEIGHT (KG): 1,9
DELIVERY MAX (L/S)USCITA:POSTERIORE 22,2 LATERALE 19,4
DELIVERY MAX (M³/H): 80
PRESSURE MAX (MMH2O): 11
PRESSURE MAX (PA): 108
RPM: 2360
RPM SIDE AIR OUTLET - MAX SPEED: 2460
SIZE A (MM): 252
SIZE B (MM): 23
SIZE C (MM): 65
SIZE D (MM): 214,5
SIZE E (MM): 228
SIZE F (MM): 135,3
SIZE G (MM): 31,5/76,7
SIZE H (MM): Ø 96,5
SIZE I (MM): 180
SIZE L (MM): 92
SIZE M (MM): 76
