VORTICE - WHITE NORDIK ECO, CEILING FAN, WITHOUT LIGHT AND CONTROL DEVICE, DIAMETER 200
• NOMINAL DIAMETER OF BLADES 2000 MM.
• CUPS AND MOTOR COVERS MOLDED IN HEAT-RESISTANT POLYMER (ASA), MATT WHITE (RAL9016).
• EC (BRUSHLESS) MOTOR WITH SHAFT TURNING IN BALL BEARINGS, REVERSIBLE FUNCTION, ABLE TO GRANT HIGH PERFORMANCE THROUGHOUT THE OPERATING RANGE. INTEGRATED MOTOR DRIVER.
• 3 POWDER COATED SHEET STEEL BLADES, MATT WHITE (RAL9016).
• POWDER COATED STEEL CEILING ROD, MATT WHITE (RAL9016).
• ACCESSORIES BAG CONTAINING FIXING BOLTS FOR BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• POSSIBILITY OF SPEED REGULATION BY POTENTIOMETER OR IR REMOTE CONTROL (OPTIONAL).

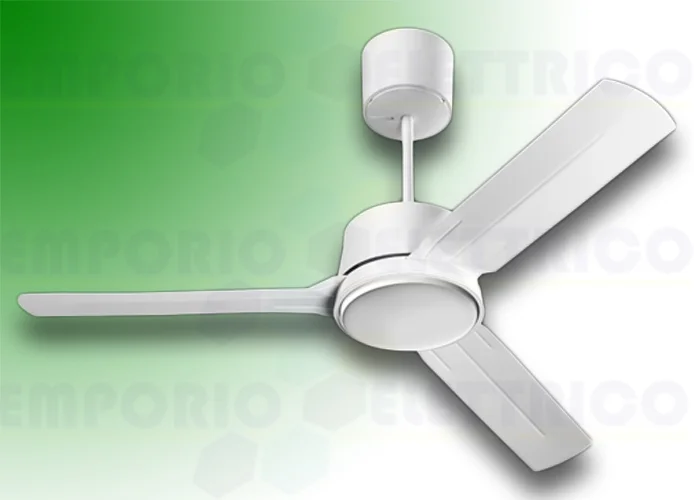

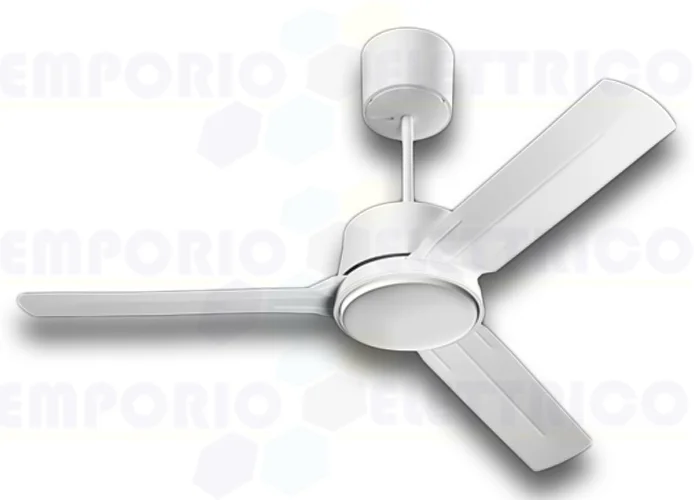

(THE IMAGE IS REFERRED TO THE MODEL WITH A 90/36" DIAMETER)
NORDIK ECO 200/80" 61065
ABSORBED CURRENT MAX (A)0,37
ABSORBED POWER MAX (W)40
BLADES DIAMETER2000
FREQUENCY (HZ)50
INSULATION CLASSI°
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)45
VOLTAGE (V)220-240
WEIGHT (KG)10
AIRFLOW SPEED AT MAX SPEED (M/S)1,38
DELIVERY MAX (M³/H)22500
DELIVERY MAX (M³/MIN)375,00
RPM200
SERVICE VALUE (M³/MIN)/W9,375
SOUND POWER LEVEL LW [DB(A)]57,8
SIZE A (MM)Ø 2000
SIZE B (MM)Ø 237
SIZE C (MM)535
