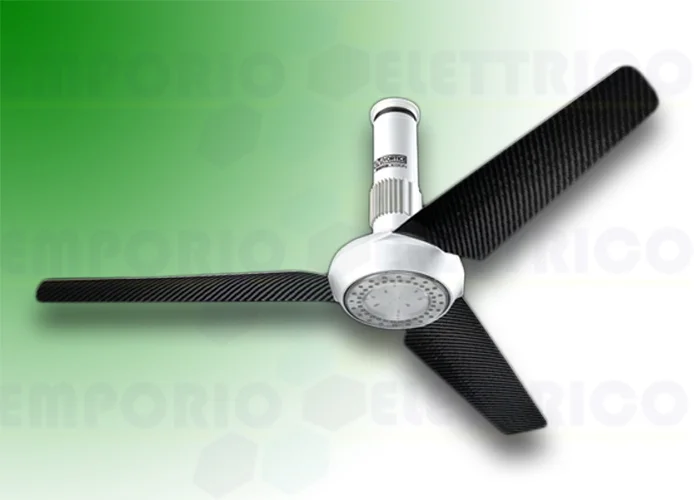

VORTICE - REVERSIBLE NORDIK AIR DESIGN CEILING FAN WITH 3 BLADES, FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS, 180 DIAMETER, LONG ROD (520 cm), WHITE, WITH CARBON BLADES
• NOMINAL DIAMETER OF BLADES: 1800 MM
• CUPS, MOTOR COVER AND CEILING ROD CASING MADE OF MATT WHITE THERMOPLASTIC RESIN (POLYCARBONATE).
• BALL BEARINGS EXTERNAL ROTOR MOTOR. REVERSIBLE ROTATION.
• 3 CARBON FIBER MADE BLADES, AIRFOIL SHAPED.
• ROD MADE OF ELECTROGALVANIZED STEEL, LENGTH 290 MM.
• LIGHTING SYSTEM BASED ON LED TECHNOLOGY (COLOR TEMPERATURE 3.500 °K), 3 DIFFERENT LIGHTING MODES AVAILABLE:
• HOME: THIS OPTION ACTIVATES 60 LED PLACED ON THE CENTRAL AREA OF THE CEILING LIGHT. THE ENTIRE UNDERNEATH AREA IS COVERED BY A DIFFUSED AND UNIFORM LIGHT (MAXIMUM SURFACE 30 M2).
• WORK (“DARK LIGHT”): THE OPTION ACTIVATES 50 LED PLACED ON THE OUTER RING OF THE CEILING LIGHT. A SMALL AREA IS ILLUMINATED AVOIDING RISKS OF GLARE.
• MIXED: ALL 110 LED ARE ACTIVATED; THE ENTIRE AREA IS ILLUMINATED.
THE LIGHT INTENSITY CAN BE ADJUSTED TO ACHIEVE THE REQUIRED INTENSITY ILLUMINATION.
• REMOTE CONTROL (RF TECHNOLOGY); SUPPLIED WITH THE PRODUCT, ALLOWS TO:
• SWITCH ON/OFF THE PRODUCT;
• SET THE ROTATION SPEED (5 SPEEDS AVAILABLE);
• SET THE ROTATION SENSE (CW OR CCW);
• SWITCH ON/OFF THE LIGHT AND SET 3 ALTERNATIVE LIGHTING MODES;
• ADJUST THE LIGHT INTENSITY (5 LEVELS AVAILABLE);
• SET THE DELAYED SHUTDOWN OF THE CEILING FAN (TIMER).
• SAFETY CABLE TO PREVENT ANY RISK OF FALL IN CASE OF IMPROPER INSTALLATION.
NORDIK AIR DESIGN 180-29 WEIß 61041
ABSORBED CURRENT MAX (A): 0,54
ABSORBED POWER MAX (W): 115
BLADES DIAMETER:1800
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 10,2
AIRFLOW SPEED AT MAX SPEED (M/S): 1,42
DELIVERY MAX (M³/H): 16500
DELIVERY MAX (M³/MIN): 275,00
RPM: 148
SERVICE VALUE (M³/MIN)/W: 2,391
SOUND POWER LEVEL LW [DB(A)]: 48,9
SIZE A (MM): Ø 1800
SIZE B (MM): 520
SIZE C (MM): 545
SIZE D (MM): Ø 300
