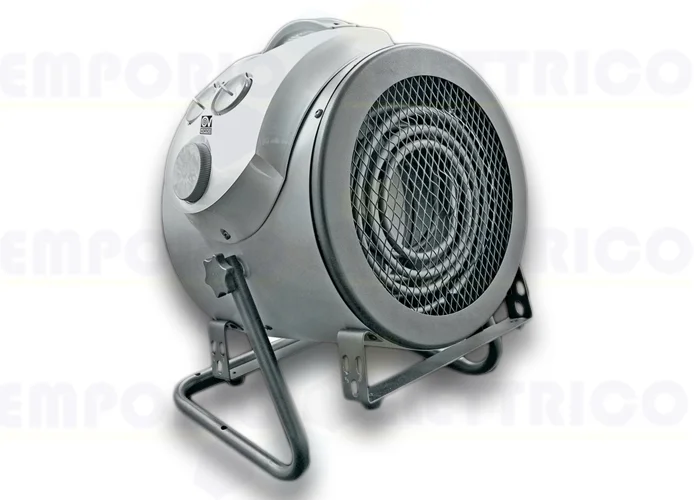

VORTICE - PROFESSIONAL CALDOPRO PLUS THERMOVENTILATOR
• CYLINDRICAL STEEL STRUCTURE ENCLOSED AT THE ENDS BY AIR INLET AND OUTLET GRILLES.
• STEEL GRILLES WITH VERTICAL RIBS.
• FAN UNIT WITH SINGLE SPEED THREE-PHASE MOTOR AND 5-BLADE ALUMINIUM ROTOR KEYED DIRECTLY ONTO THE MOTOR SHAFT.
• TUBULAR HEATING ELEMENT RATED 3000 W.
• CONTROL PANEL LOCATED ON TOP OF THE MAIN CYLINDRICAL CASING, MADE OF SELF-EXTINGUISHING ABS PLASTIC RATED V0, WITH PAINTED FINISH AND BUILT-IN CARRYING/POSITIONING HANDLE.
• MECHANICAL TIMER, 180 MINUTES MAX, ALLOWING DELAYED SHUTDOWN.
• ROTARY HEAT OUTPUT SELECTOR WITH THREE SETTINGS: OFF, HALF-POWER, FULL POWER AND FAN ONLY.
• AUTO-RESET SAFETY DEVICE, OPERATING AS THERMAL OVERLOAD PROTECTIVE CUTOUT MOUNTED TO THE HEATING ELEMENT.
• BENT AND PAINTED STEEL FEET, WITH ANTIVIBRATION MOUNTS.
• POWER CORD COMPLETE WITH INDUSTRIAL GRADE FIVE PIN SAFETY PLUG, LENGTH 1800 MM.
• BULB TYPE ROOM THERMOSTAT, ABLE TO GUARANTEE GREATER READING ACCURACY.
• IMQ SAFETY CERTIFICATION.
THREE-PHASE 3000 T 70806
ABSORBED CURRENT MAX (A): 4,3
ABSORBED POWER MAX (W): 3000
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: X4
VOLTAGE (V): 400
WEIGHT (KG): 5,4
SIZE A (MM): 250
SIZE B (MM): 330
SIZE C (MM): 340
