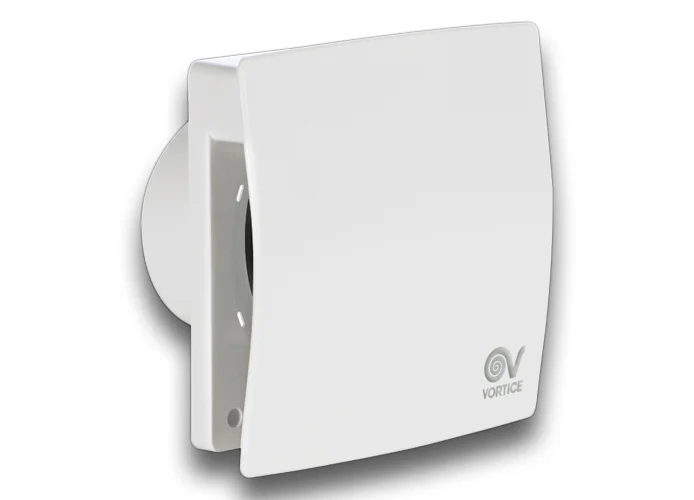

VORTICE - AXIAL WALL, CEILING AND FALSE CEILING ASPIRATOR, IDEAL FOR AIR EXCHANGE IN RESIDENTIAL AND COMMERCIAL PLACES, SMALL AND MEDIUM DIMENSIONS, EVEN IN THE PRESENCE OF MEDIUM LENGTH EXHAUSTED PIPES
• HOUSINGS MADE OF SHOCKPROOF AND UV RESISTANT WHITE ABS.
• NOMINAL DIAMETER 120 MM.
• AC MOTOR EQUIPPED WITH LONG-LIFE BALL-BEARINGS, MIXED-FLOW IMPELLERS MADE OF PP RESISTANT TO AGGRESSIVE SUBSTANCES.
• MAXIMUM AIR FLOW 175 M3/H.
• INTEGRATED BUTTERFLY BACK-DRAUGHT SHUTTER DESIGNED TO PREVENT UNWANTED AIR INFLOWS WHEN THE APPLIANCE IS SWITCHED-OFF.
• PROTECTION RATING IP45, SUITABLE FOR INSTALLATION IN ZONE 1 OF BATHROOMS, AS DEFINED BY INTERNATIONAL STANDARD IEC 60364-7.
• IMQ SAFETY CERTIFICATION.
PUNTO EVO FLEXO LONG LIFE 30000 H MEX 120/5" LL 1S 11333
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,095
MAX. ABSORBED POWER AT MAX SPEED (W): 13
NOMINAL DIAMETER (MM): 120
VOLTAGE (V): 220-240
WEIGHT (KG): 0,77
MAX DELIVERY AT MAX SPEED (L/S): 48,6
MAX DELIVERY AT MAX SPEED (M³/H): 175
PRESSURE MAX - MAX SPEED (MMH20): 5
PRESSURE MAX - MAX SPEED (PA): 49,04
RPM MAX: 2075
SOUND POWER LW [DB(A)] - MAX SPEED: 52,8
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 32,3
SIZE A (MM): 193
SIZE B (MM): 193
SIZE C (MM): 138
SIZE D (MM): Ø 119
SIZE E (MM): 71
SIZE F (MM): 53
SIZE G (MM): 152
SIZE H (MM): 152
SIZE L (MM): Ø 3,5
