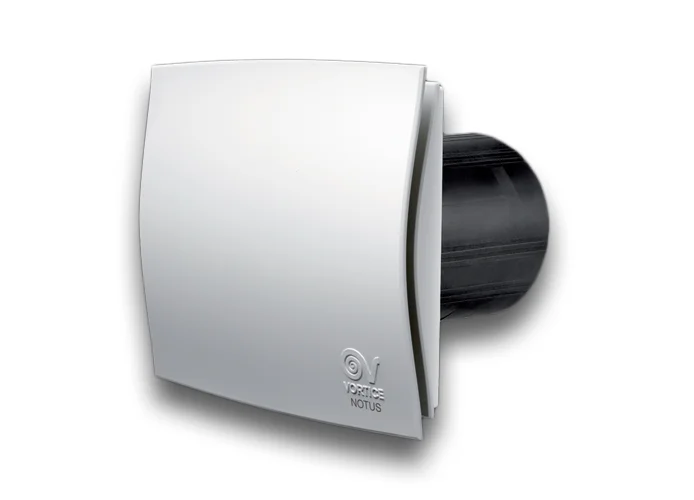

VORTICE - AXIAL ASPIRATOR FOR WALL, CEILING AND DUCT, IDEAL FOR CONTINUOUS VENTILATION (THANKS TO THE VERY LOW CONSUMPTION OF THE ELECTRONIC COMMUTED MOTOR - EC BRUSHLESS, ADOPTED), OF RESIDENTIAL AND COMMERCIAL PLACES OF SMALL AND MEDIUM DIMENSIONS, WHOSE PLAN ALLOWS DIRECT DISCHARGE OR IN PIPING OF REDUCED LENGTH
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• THREE-PHASE EC BRUSHLESS MOTOR OF EXTERNAL ROTOR TYPE WITH SHAFT TURNING IN BALL BEARINGS, DESIGNED TO GUARANTEE NOTABLY LOW ENERGY CONSUMPTION AND TO PROVIDE 3 DIFFERENT AIR FLOW RATES (THE FIRST TWO OF WHICH CAN BE SELECTED AT THE MOMENT OF INSTALLATION)
• AIR FLOW BETWEEN 11.7 M3/H AND 42 M3/H
• THE APPLIANCE IS EQUIPPED WITH AN ELECTRONIC CIRCUIT BOARD AND RELATIVE HUMIDITY SENSOR, ALLOWING IT TO SWITCH AUTOMATICALLY FROM A PREVIOUSLY SET MINIMUM AIR FLOW RATE TO THE MAXIMUM SETTING. THE PCB INCORPORATES AN ELECTRONIC TIMER THAT SHUTS OFF THE MOTOR AUTOMATICALLY WHEN RELATIVE HUMIDITY RETURNS BELOW THE THRESHOLD VALUE. THE TIMER SETTING IS SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
VORT NOTUS T-CHS 11177
ABSORBED POWER 1ST SPEED (W): 2,1
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,037
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,028
MAX. ABSORBED POWER AT MAX SPEED (W): 6,4
NOMINAL DIAMETER (MM): 100
VOLTAGE (V): 220-230
WEIGHT (KG): 0,8
DELIVERY 1ST SPEED (L/S): 3,3
DELIVERY 1ST SPEED (M³/H): 11,7
MAX DELIVERY AT MAX SPEED (L/S): 11,7
MAX DELIVERY AT MAX SPEED (M³/H): 42
PRESSURE - 1ST SPEED (MMH20): 2,4
PRESSURE - 1ST SPEED (PA): 23,5
PRESSURE MAX - MAX SPEED (MMH20): 8,8
PRESSURE MAX - MAX SPEED (PA): 86,3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 17.3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 10.1
SIZE A (MM): 194,6
SIZE B (MM): 182
SIZE C (MM): 171
SIZE D (MM): 164
SIZE E (MM): 97,8
SIZE F (MM): 129
SIZE G (MM): 40,5
SIZE H (MM): 22,2
SIZE I (MM): 8
