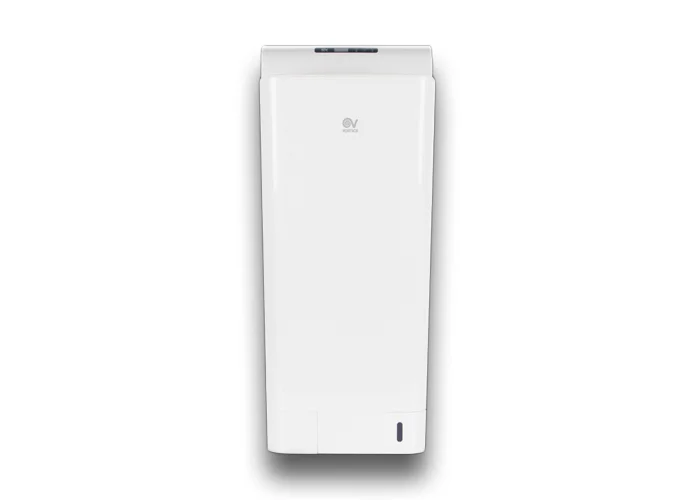

VORTICE - AUTOMATIC ELECTRIC AIR CURTAIN DRYER.
• MOULDED CASING IN WHITE SELF-EXTINGUISHING ABS.
• STEEL WALL-MOUNTING FLANGE.
• THERMALLY PROTECTED BRUSHLESS EC MOTOR, WITH SHAFT MOUNTED ON BALL-BEARING SUPPORTS.
• DEACTIVATABLE ELECTRIC RESISTANCE: A SPECIAL BUTTON, LOCATED ON THE LEFT HAND SIDE OF THE PRODUCT, ALLOWS THE DEACTIVATION OF THE ELECTRIC RESISTANCE WHEN THE HIGH AMBIENT TEMPERATURES MAKE IT POSSIBLE TO AVOID CONSUMPTION RELATED TO THE HEATING OF THE TREATED AIR.
• EQUIPPED WITH UV GERMICIDAL LAMP.
• IMMEDIATE SWITCH-OFF WHEN HANDS ARE REMOVED.
• ANTI-VANDALISM PROTECTION: THE PRODUCT STOPS AUTOMATICALLY AFTER 25 SEC. OF UNINTERRUPTED OPERATION.
• PROTECTION AGAINST OVERHEATING, OVERLOADS AND SHORT CIRCUITS.
• WATER DROPLET COLLECTION TANK
• HEPA FILTER.
VORT SUPER DRY UV B 70907
FREQUENCY (HZ): 50-60
DEGREE OF PROTECTION: IPX4
INSULATION: CLASS I
WEIGHT (KG): 11
MOTOR POWER (W): 700
WORKING TEMPERATURE (°C): 40
VOLTAGE (V): 220-240
1ST POWER (W): 1650
2ND POWER (W): 2050
SOUND PRESSURE LP [DB (A)] 1M: 76
AIR SPEED (KM/H): 342
DIMENSION A (MM): 278
DIMENSION B (MM): 705
DIMENSION C (MM): 215
DIMENSION D (MM): 300
DIMENSION E (MM): 638
