vds irreversible gearmotor tom 230 - 400y m6 11040/1
SKU: 11040/1
€2,633.00 €1,158.52VAT INCLUDED

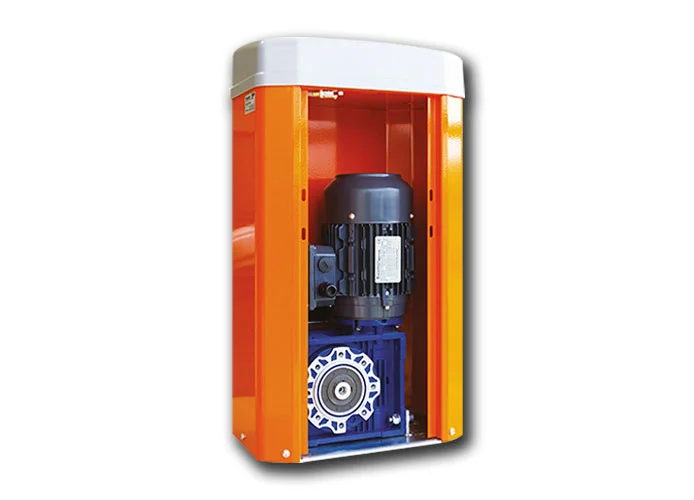

VDS - IRREVERSIBLE GEARMOTOR TOM 230-400Y FOR SLIDING GATES, UP TO 5000 KG
INTENSIVE USE
WITHOUT CONTROL UNIT
CPT COUNTERPLATE NOT INCLUDED
PINION M4.
IRREVERSIBLE GEARMOTOR TOM 11040/1
230V-400V AC
FEATURES - Gates up to 5000 kg
- Painted steel and stainless steel gearmotor casing, abs cover
- Steel and bronze gears machined from billet
- Air-cooled motor and gearbox in oil bath
- Version with or without control equipment
- External control equipment with sealed box
- High-performance electric motor
- Version with mechanical limit switch
- Manual release with hexagonal key
- Extremely quiet operation
- Motor not equipped with mechanical clutch, provide appropriate safety equipment
- Motor door safety microswitch
- Three-phase 230 - 400Y Vac electric motor.
