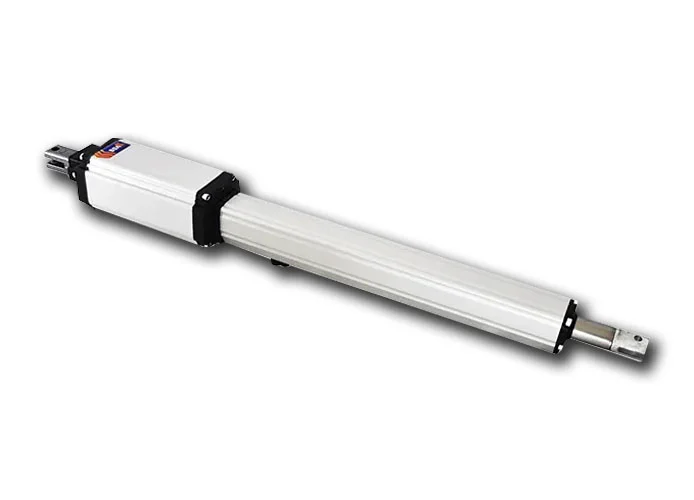

VDS - IRREVERSIBLE GEARMOTOR LINEAR 11 500 FOR SWING GATES, MAX LEAF 3 MT
STROKE OF 500 mm.
GEARMOTOR LINEAR 11 500 100018/5
230V AC
FEATURES - leaf max 3 mt
- Screw actuator in robust extruded aluminium construction
- Useful stroke – mm 400 – mm 500
- Stainless steel rod
- Limit switches on request
- Extremely quiet operation
- High performance electric motor
- 140° thermal protection
- Manual key release
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust
- opening 120°
- Quick assembly with multi-position brackets and quick technopolymer covers
- Anti-crushing device* (EN 12453)
- Speed slowdown* (EN 12453)
- power supply 230Vac – 24Vcc
- Optional battery back-up kit.
