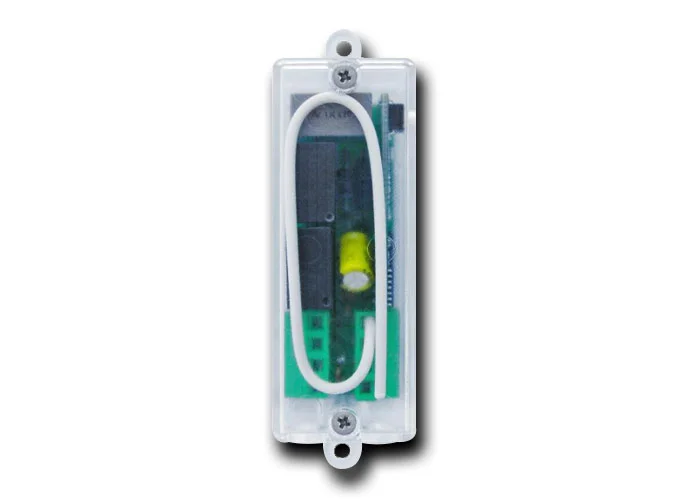

NOLOGO - 230VAC CONTROL UNIT FOR LIGHT CONTROL OR 1 MOTOR FOR BLINDS OR ROLLING SHUTTERS.
- TWO-CHANNEL 230V INDOOR RADIO RECEIVER
- IT CAN CONTROL TWO LIGHTS WITH UP TO 500 WATTS OF POWER EACH OR AN ELECTRIC MOTOR UP TO 500 WATTS FOR ROLLER SHUTTERS, BLINDS
- IN THE FIRST 5 SECONDS AFTER SWITCHING ON THE START-S102 CONTROL UNIT, THE OPERATING MODE CAN BE SET VIA THE BUTTON
- EACH PRESS OF THE BUTTON SWITCHES: MOTOR CONTROL RED LED, LIGHT CONTROL GREEN LED
- IN MOTOR MODE, THE CONTROL UNIT IS ALREADY SET BY DEFAULT WITH A WORKING TIME OF 60 SECONDS AND IS DESIGNED FOR MOTORS WITH ON-BOARD MECHANICAL LIMIT SWITCHES.
NOLOGO
START-S102B
TECHNICAL CHARACTERISTICS:
POWER SUPPLY: 230VAC, 50/60HZ
MIN/MAX: 100/255VAC
POWER: 500VA-230V, 600VA-120V
SIZE (MM): 85X35X25
IP CLASS: 22
WEIGHT (GR) :48.
