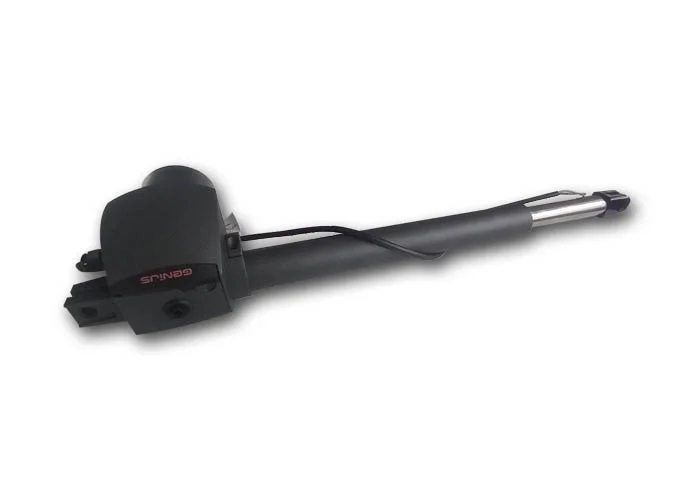

GENIUS - LEFT ACTUATOR FOR G-BAT 24V SWING GATES, UP TO 3 M PER LEAF
USER-FRIENDLY LEVER RELEASE
INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
SLOWDOWN IN OPENING AND CLOSING PHASES
OPTIONAL 6100254 CARTER TO ROD COVER CASING
EQUIPPED WITH ENV FUNCTION (VIRTUAL ENCODER) - PATENTED
6170039
LEFT G-BAT 324 ENV
24V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRIC MOTOR (V): 24
- NOMINAL POWER (W): 35
- THRUST (DAN): 150
- STROKE (MM): 300
- MAX. SPEED (CM/SEC.)¹: 2,1
- OPERATING FREQUENCY AT 20°C: CONTINUOUS
- OPERATING TEMPERATURE (°C): -20 +55
- DEGREE OF PROTECTION: IP54
- WEIGHT (KG): 7.5
