genius irreversible operator for shutter 20 rolling shutters 230v 6140010

SKU: 6140010

€476.00  €223.72VAT INCLUDED

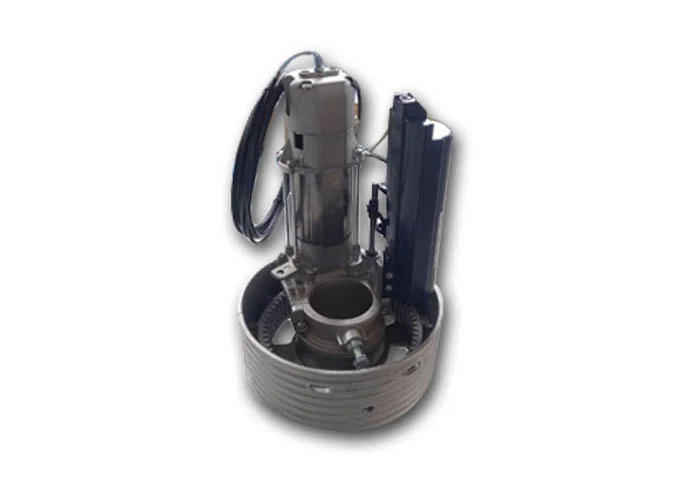

GENIUS - IRREVERSIBLE OPERATOR FOR ROLLING SHUTTERS WITH ELECTROMAGNETIC BRAKE, CROWN WHEEL DIAMETER 240 mm, SHAFT DIAMETER 76 mm, LIFTING UP TO 260 kg

- COMPLETELY MAINTENANCE-FREE, SILENT AND QUICK TO INSTALL
- MANUAL RELEASE ACTING DIRECTLY ON THE REDUCTION SO THAT THE FRAME IS LIGHTER
- MICROMETRIC LIMIT SWITCH ADJUSTMENT IN SEMI-AUTOMATIC MODE



SHUTTER 20     6140010
230V AC
TECHNICAL DETAILS:
POWER SUPPLY (V): 230
POWER FREQUENCY (HZ): 50
TORQUE (NM):280
POWER (W):1260
ABSORPTION (A): 5.4
MAX. WORKING TIME (MIN.): 4
MAX. SHUTTER HEIGHT (M): 6
OPERATING TEMPERATURE (°C): -20 +55

  • Brand: GENIUS
