genius irreversible gearmotor mistral 300 230v 6170116

SKU: 6170116

€512.00  €240.64VAT INCLUDED

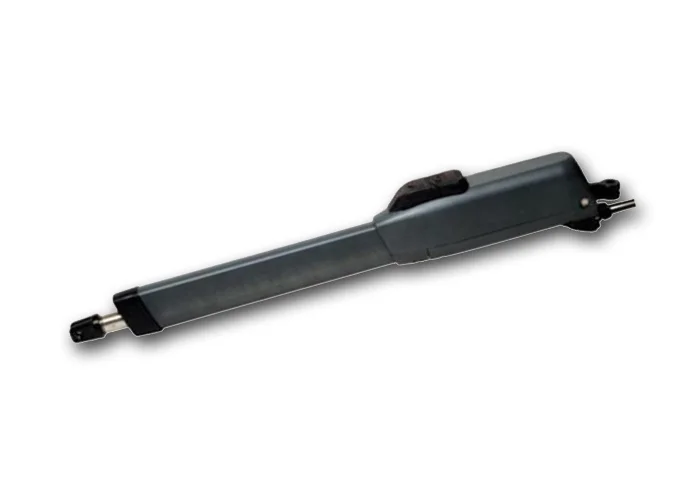

GENIUS - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR FOR SWING GATES, CONDOMINIUM APPLICATION, UP TO 3M
- G-WAY SYSTEM AND SAFETY PROCODER (WITH BRAIN19 CARD)
- LEVER RELEASE AND ACCESS WITH CUSTOMISED KEY
- INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN AND STEEL WORM GEAR
- OPENING AND CLOSING SLOWDOWN IN BOTH VERSIONS
- HORIZONTAL CABLE OUTLET FACILITATING INSTALLATION CLOSE TO THE GROUND
- DOUBLE-LAYER PAINTED ALUMINIUM BODY FOR INCREASED DURABILITY



MISTRAL 300  6170116

230V AC

TECHNICAL DETAILS:
POWER SUPPLY (V) 230
ELECTRIC MOTOR (V) 230
NOMINAL POWER (W) 300
CURRENT (A) 1.3
THERMAL PROTECTION (°C) 140
CAPACITOR (ΜF)8
THRUST (DAN) 300
STROKE (MM) 300
MAX. SPEED (CM/SEC.) 1.6
OPERATING FREQUENCY AT 20°C S3 - 30%
OPERATING TEMPERATURE (°C) - 20 + 55
DEGREE OF PROTECTION IP54
WEIGHT (KG) 7.8



Complementary accessories (not included):
- 6100328 BRAIN 19 electronic board
- JA320 Board Cover
- 6100347 RQFZ 868 MHz frequency module
- 6100332 KILO TX2 JLC two-channel transmitter
- 6100315 GUARD 230V flash light
- 6100147 Pair of VEGA photocells
- JA31101-15 QUICK 1 outdoor key switch
