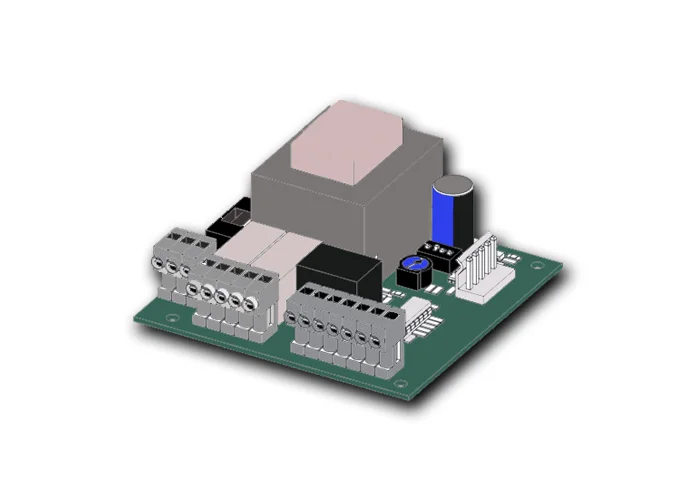

GENIUS - ELECTRONIC BOARD FOR 230V ROLLING SHUTTERS
GEO 13 6100306
230V AC
TECHNICAL DETAILS:
- SUPPLY VOLTAGE (VAC): 230 (+6% -10%) 50HZ
- POWER CONSUMPTION (W): 7
- MAX. LOAD MOTOR (W): 1300
- MAX. LOAD ACCESSORIES (MA): 500
- OPERATING TEMPERATURE (°C): -20 + 50
- PROTECTION FUSES: 2 (MAINS SUPPLY AND ACCESSORIES)
- OPERATING LOGICS: STEP-BY-STEP/AUTOMATIC
- WORKING CYCLE: (OPENING/CLOSING) MIN. 8 SECONDS MAX. 90 SECONDS, ADJUSTABLE VIA TRIMMER
- PAUSE TIME: 7 PAUSE TIMES SELECTABLE VIA DIP-SWITCH
- TERMINAL BOARD INPUTS: MAINS SUPPLY/OPEN/STOP/OBSTACLE DETECTION
- QUICK CONNECTOR: 5-PIN CONNECTOR FOR RECEIVER BOARD
- TERMINAL BOARD OUTPUTS: MOTOR POWER SUPPLY/FLASHLIGHT POWER SUPPLY/ACCESSORY POWER SUPPLY
