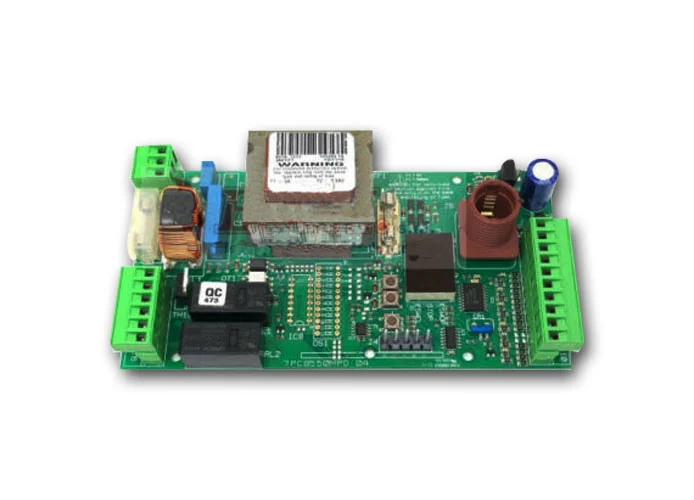

genius electronic board geo 07 230v 6100151

SKU: 6100151

€244.00  €114.68VAT INCLUDED

GENIUS - ELECTRONIC BOARD FOR OVERHEAD DOORS 230V
INTEGRATED INTO EUROBREEZE 06 C AND EUROBREEZE 06 C SLOW GEARED MOTORS
WORKING TIME PROGRAMMABLE FROM 0 TO 59 SEC. (DEFAUL 20 SEC.)
PROGRAMMABLE PAUSE TIME FROM 0 TO 4 MIN (DEFAUL 2 MIN.)
ELECTRONIC CLUTCH PROGRAMMABLE ON 50 LEVELS

GEO 07    6100151

230V AC

TECHNICAL DETAILS:
- POWER SUPPLY (VAC): 230 (+6% -10%) 50HZ
- MAX. POWER CONSUMPTION (W): 12
- MAX. LOAD MOTORS (W): 800
- MAX. LOAD. ACCESSORIES (MA): 300
- TEMPERATURE OF OPERATION (°C): -20 +55
- CIRCUIT PROTECTION FUSES: MAINS/ACCESSORIES OPERATING LOGIC AUTOMATIC/SEMIAUTOMATIC
- LIMIT SWITCH INTERVENTION MODE: 4 TYPES OF OPERATION
- TERMINAL BOARD INPUTS: OPEN/ENCODER/SECURITY IN OPENING AND CLOSING/ LIMIT SWITCH IN OPENING AND
- CLOSING FLASHER 230VAC - 60W
- QUICK CONNECTOR: 5-PIN RADIO RECEIVER
- TERMINAL BOARD OUTPUTS: MOTOR/EXTERNAL COURTESY LAMP 230VAC/ACCESSORY POWER SUPPLY 24VDC
- MAX. LOAD BUILT-IN COURTESY LAMP (W):25
- MAX. LOAD EXTERNAL COURTESY LAMP (W):250

  • Brand: GENIUS
