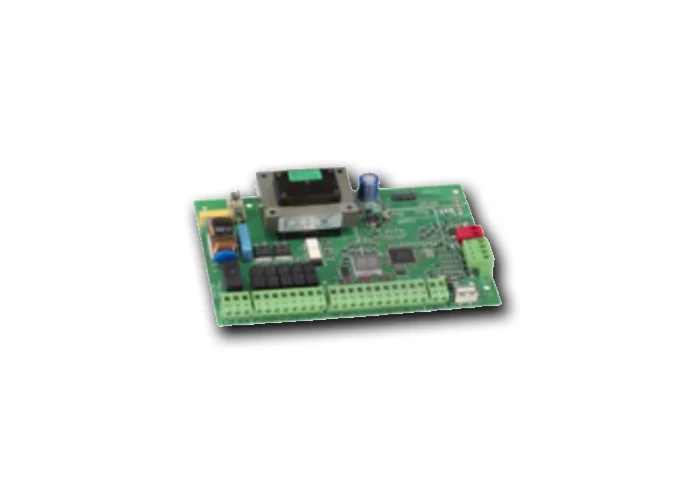

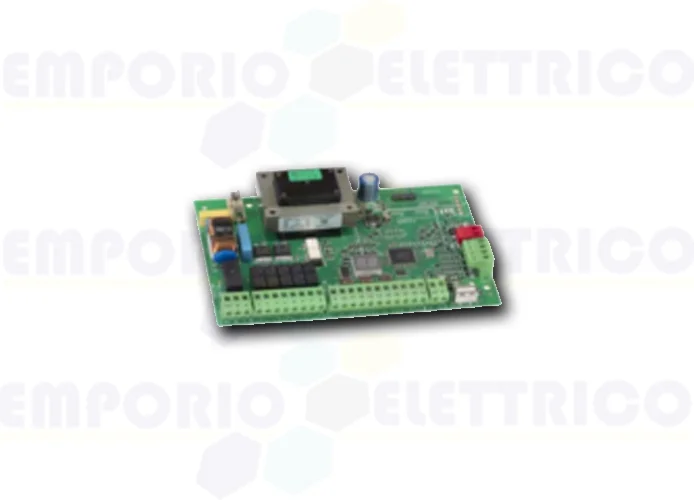

GENIUS - BRAIN 19 LC REPLACEMENT CONTROL BOARD FOR GENIUS G-BAT, SIROCCO, MISTRAL, ROLLER, AND TRIGON 02 SWING GATE AUTOMATION SYSTEMS.
- ADJUSTABLE VIA THE DISPLAY
- INTEGRATED LOW-POWER MODE: THE BOARD INCLUDES A LOW-POWER FUNCTION IN STANDBY MODE (LOW CONSUMPTION – LC), IN ACCORDANCE WITH THE REQUIREMENTS OF REGULATION (EU)
- EQUIPPED WITH A 3-PIN CONNECTOR FOR RQFZ QUICK-CONNECT RECEIVERS, A USB PORT FOR DOWNLOADING/UPLOADING RADIO CODES AND FIRMWARE UPDATES, AND A 12 Vac OUTPUT FOR ELECTRONIC LOCK CONTROL
- THE MODULE, EQUIPPED WITH A 3-PIN CONNECTOR, ALLOWS FOR THE PROGRAMMING OF VARIOUS TYPES OF GENIUS REMOTE CONTROLS.
- CAPABILITY TO CONTROL ENCODERS AND ADJUST THRUST FORCE VIA THE DISPLAY IN 50 LEVELS FOR EACH MOTOR.
- NEW MODEL REPLACING THE BRAIN 17 MODEL
- UPGRADE CAPABILITY VIA THE XUSB MODULE: THE XUSB MODULE ALLOWS YOU TO UPDATE THE FIRMWARE OF GENIUS BOARDS USING A USB FLASH DRIVE WHEN THE BOARD IS NOT PRESENT. IT CONNECTS DIRECTLY TO THE BOARD AND ENABLES YOU TO LOAD THE UPDATED FIRMWARE. IT IS A TEMPORARY ACCESSORY THAT CAN BE REUSED ON MULTIPLE COMPATIBLE CONTROL UNITS.
- PROGRAMMABLE OUTPUT: IT CAN MANAGE FUNCTIONS SUCH AS COURTESY LIGHTS, ERROR INDICATORS, FLASHING LIGHTS, AND TRAFFIC LIGHTS, ADAPTING TO ANY TYPE OF INSTALLATION.
BRAIN19 LC
6100329 (EX 6100328 6100304)
230V AC
TECHNICAL SPECIFICATIONS:
- SUPPLY VOLTAGE (VAC): 230 (+6% -10%) 50HZ
- POWER CONSUMPTION (W): 4.3 W IN STANDBY
- MAX. MOTOR LOAD (W): 800
- MAX. ACCESSORY LOAD (W): 500
- OPERATING TEMPERATURE (°C): -20 to +55
- SAFETY FUSES: 2
- OPERATING MODES: SEMI-AUTOMATIC / SEMI-AUTOMATIC STEP-BY-STEP / AUTOMATIC SAFETY STEP-BY-STEP / AUTOMATIC / AUTOMATIC STEP-BY-STEP / SEMI-AUTOMATIC B / MAN-AT-THE-CONTROL
- OPENING/CLOSING TIME: PROGRAMMABLE VIA LEARNING BUTTON
- PAUSE TIME: 0 TO 9.5 MIN
- DOOR CLOSING DELAY TIME: 0 TO 1.3 MIN
- DOOR OPENING DELAY TIME: 2 SEC. (CAN BE DISABLED VIA DISPLAY)
- PUSHING FORCE: ADJUSTABLE VIA DISPLAY IN 50 LEVELS FOR EACH MOTOR
- TERMINAL BLOCK INPUTS: OPEN/ OPEN INDEPENDENT DOOR/ STOP/ LIMIT SWITCH/ USB OPENING AND CLOSING SAFETY/ POWER SUPPLY + GROUND/ G-WAY BUS
- TERMINAL BLOCK OUTPUTS: FLASHING LIGHT/ MOTORS/ 24VDC ACCESSORY POWER SUPPLY/ FAILSAFE/ 12VAC ELECTRIC LOCK POWER SUPPLY/ 24VDC INDICATOR LIGHT
- QUICK CONNECTOR: 3-PIN FOR GENIUS RQFZ RECEIVER MODULE/BUILT-IN DECODING
- SELECTABLE FUNCTIONS: LOGIC AND PAUSE TIME/PUSH FORCE/DOOR DELAY DURING OPENING AND CLOSING/REVERSE STROKE/FAILSAFE/CLOSING SAFETY LOGIC/PRE-FLASHING/LIMIT SWITCH USAGE/PROCODER ENCODER USAGE
- PROGRAMMING BUTTONS: LEARNING OF OPERATING TIMES, WITH OR WITHOUT LIMIT SWITCHES OR ENCODERS, WITH OR WITHOUT SLOW-DOWNS, AND PROGRAMMING OF RADIO CODES
- USB CONNECTION: FIRMWARE UPDATE/ UPLOAD AND DOWNLOAD SYSTEM CONFIGURATION/ UPLOAD AND DOWNLOAD RADIO CODES
