GENIUS - KIT FOR GATES WITH TWO SWING LEAVES, UP TO 3,5 m OF WIDTH AND 500 kg OF WEIGHT, COMPLETE WITH ACCESSORIES
- LEVER RELEASE AND ACCESS WITH CUSTOMISED KEY
- THREE-STAGE MECHANICAL REDUCTION WITH STEEL WORM GEAR AND SINTERED SLOW SHAFT SPROCKET
- OPENING AND CLOSING SLOWDOWNS
- MOTOR WITH DOUBLE COATING
- FREQUENCY 433 MHz - RC
FOUNDATION BOXES ARE NOT INCLUDED (YOU CAN CHOOSE TO ADD TO THE KIT A PAIR OF YOUR CHOICE BETWEEN):
- 2 x FOUNDATION BOX 58P0050
- 2 x STAINLESS STEEL FOUNDATION BOX 58P0052
KIT ROLLER 433 MHZ 5170208
230V AC

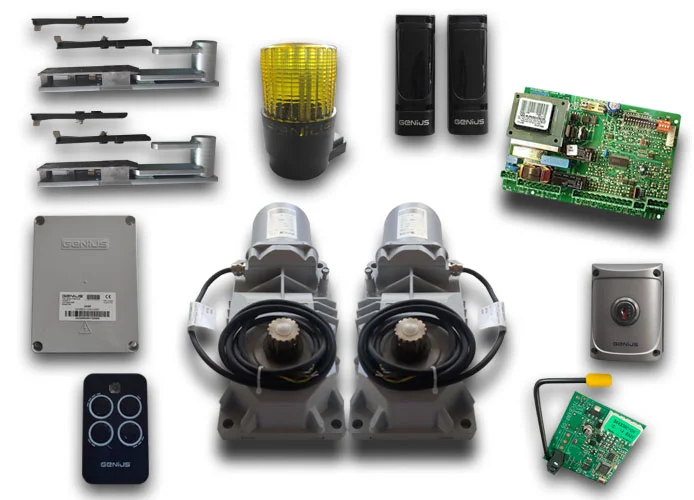

IT INCLUDES:
- 2 6170077: Underground electromechanical gearmotor for swing gates for residential application, up to 3,5 m and 500 kg of weight
- 1 JA592: Electronic board for 230v ac swing gates
- 1 JA320: Electronic control board enclosure, 230v ac
- 2 6100286: Release device for 110° opening 6100286
- 1 6100334: 4-channel transmitter echo tx 4 rc 433 mhz
- 1 6100147: Vega bus photocells
- 1 6100354: 433 MHz single-channel receiver
- 1 6100315: Guard 230v led flashing lamp
- 1 JA31101: Quick 1 key-operated selector
- 1 Warning sign
MOTOR TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- NOMINAL POWER (W) 380
- CURRENT (A) 1.7
- CAPACITOR (ΜF) 12,5
- MAXIMUM TORQUE (NM) 330
- ANGULAR SPEED (°/SEC) 6
- OPENING TIME AT 90° (SEC.)¹ 18 (110°/180°)-10.5 (140°)
- OPERATING FREQUENCY AT 20°C S3 - 30%
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP67
