genius automation kit g-bat 300 868 MHz 230v 51701281

SKU: 51701281

€712.00  €512.64VAT INCLUDED

GENIUS -KIT FOR GATES WITH TWO SWING LEAVES UP TO 3 m OF WIDTH, COMPLETE WITH ACCESSORIES


- GEARMOTOR WITH EASY-TO-USE RELEASE LEVER
- INTERNAL KINEMATIC MOTION INCLUDING A BRONZE CROWN GEAR AND A STEEL WORM GEAR
- OPENING AND CLOSING SLOW MOTION
- OPTIONAL ROD COVER

- FREQUENCY 868 MHz - JLC

KIT G-BAT 868 MHZ     51701281
230V AC

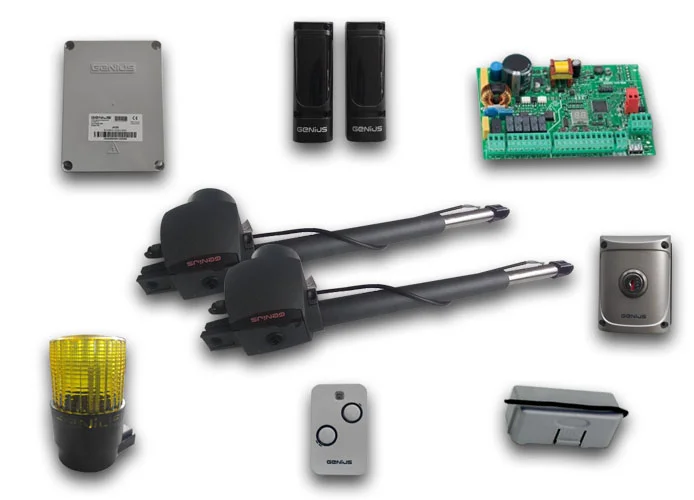

IT INCLUDES:
-  1 6170026: Right actuator for g-bat 230v swing gates, up to 3 m per lea
-  1 6170027: Left actuator for g-bat 230v swing gates, up to 3 m per leaf
-  1 6100328: Brain19 control unit 230v for swing gates
-  1 JA320: Control unit cover
-  1 6100332: 2-channel remote control kilo tx 2 868 mhz
-  1 6100147: Vega bus photocells
-  1 6100347: Frequency module rqfz 868 6100347
-  1 6100315: Guard 230v led flashing lamp
-  1 JA31101: Quick 1 key-operated selector
-  1 Gate Sign

MOTORS TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- NOMINAL POWER (W) 280
- CURRENT (A) 1.2
- THERMAL PROTECTION (°C) 140
- CAPACITOR (ΜF) 8
- THRUST (DAN) 350
- TORQUE (MM) 300
- MAX. SPEED (CM/SEC.)¹ 1.6
- OPERATING FREQUENCY AT 20°C S3 - 30%
- OPERATING TEMPERATURE (°C) -
20 +55
- DEGREE OF PROTECTION IP54

  • Brand: GENIUS
