GENIUS - KIT FOR GATES WITH TWO SWING LEAVES, UP TO 3 m OF WIDTH, COMPLETE WITH ACCESSORIES
- GEARMOTOR WITH EASY-TO-USE RELEASE LEVER
- INTERNAL KINEMATIC MOTION INCLUDING A BRONZE CROWN GEAR AND A STEEL WORM GEAR
- OPENING AND CLOSING SLOW MOTION
- OPTIONAL ROD COVER
- FREQUENCY 433 MHz - RC
KIT G-BAT 433 MHZ 51701271
230V AC

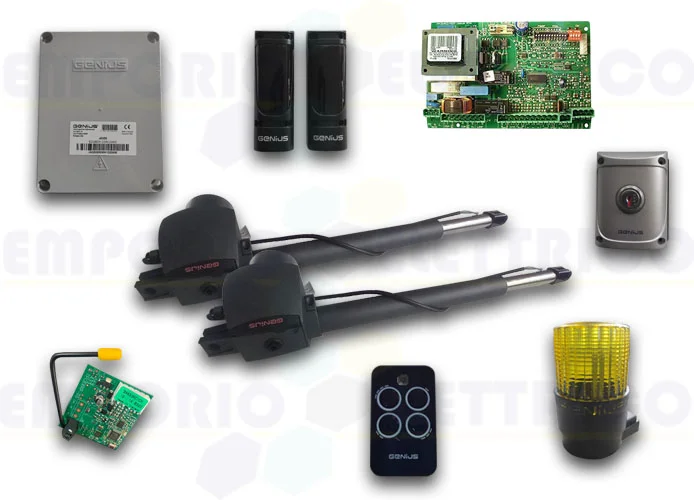

IT INCLUDES:
- 1 6170026: Right actuator for g-bat 230v swing gates, up to 3 m per leaf
- 1 6170027: Left actuator for g-bat 230v swing gates, up to 3 m per leaf
- 1 JA592: Electronic board for 230v ac swing gates
- 1 JA320: Electronic control board enclosure, 230v ac
- 1 6100334: 4-channel transmitter echo tx 4 rc 433 mhz
- 1 6100147: Vega bus photocells
- 1 6100354: 433 MHz single-channel receiver
- 1 6100315: Guard 230v led flashing lamp
- 1 JA31101: Quick 1 key-operated selector
- 1 Warning sign
MOTORS TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- NOMINAL POWER (W) 280
- CURRENT (A) 1.2
- THERMAL PROTECTION (°C) 140
- CAPACITOR (ΜF) 8
- THRUST (DAN) 350
- TORQUE (MM) 300
- MAX. SPEED (CM/SEC.)¹ 1.6
- OPERATING FREQUENCY AT 20°C S3 - 30%
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP54
