genius automation kit blizzard 500 enc 868 MHz 230v 104001

SKU: 104001

€501.00  €360.72VAT INCLUDED

GENIUS - KIT FOR SLIDING GATES WEIGHING UP TO 500kg, EQUIPPED WITH ACCESSORIES

- IRREVERSIBLE GEARMOTOR EQUIPPED WITH MAGNETIC LIMIT SWITCHES
- ELECTRONIC BOARD WITH TRANSPARENT PLASTIC PROTECTION HOUSING AND EXTERNAL PROGRAMMING BUTTONS, INCLUDED WITH THE MOTOR
- WIDE SELECTION OF OPERATING LOGICS AND PARAMETERS
- COMPACT DIMENSIONS
- LARGE INTERNAL SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT




KIT BLIZZARD 500 ENC
104001
230V

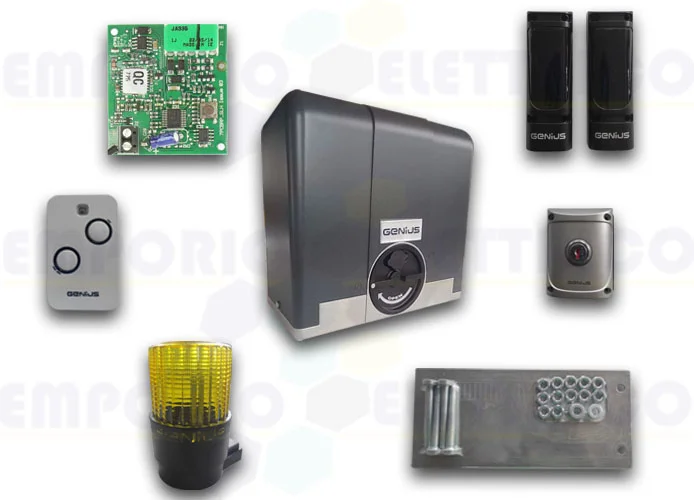

IT INCLUDES:
-  1 61100821 Electromechanical operator blizzard enc 500 (with sprint 382 control board and integrated encoder and lock-protected release)
-  1 Foundation plate
-  1 6100332 2-channel transmitter kilo tx 2 868 mhz
-  1 6100147 Vega photocells
-  1 JA31101 Quick 1 key-operated selector
-  1 6100315 Guard flashing led lamp 230v
-  1 6100352 One-channel receiver 868 mhz
-  1 Warning sign

TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- NOMINAL POWER (W) 360
- THERMAL PROTECTION (°C) 140 (SELF-RESETTING)
- CAPACITOR (ΜF) 10
- MAX. THRUST (N) 390
- PINION TYPE Z16 MOD.4
- LEAF SPEED (M/MIN) 12
- OPERATING FREQUENCY AT 20° S3 - 40%
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP44

  • Brand: GENIUS
