GENIUS - KIT FOR SLIDING GATES WEIGHING UP TO 400kg, EQUIPPED WITH ACCESSORIES
- IRREVERSIBLE GEARMOTOR EQUIPPED WITH MAGNETIC LIMIT SWITCHES
- COMPLETE CONTROL OF MOVEMENT AND EFFECTIVE RESPONSE TO REVERSAL ON OBSTACLE.
- ELECTRONIC BOARD WITH TRANSPARENT PLASTIC PROTECTION HOUSING AND EXTERNAL PROGRAMMING BUTTONS
- WIDE SELECTION OF OPERATING LOGICS AND PARAMETERS
- COMPACT DIMENSIONS
- LARGE INTERIOR SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
- FREQUENCY 868 MHz - JLC
KIT BLIZZARD 400 ENC
104005
24V DC

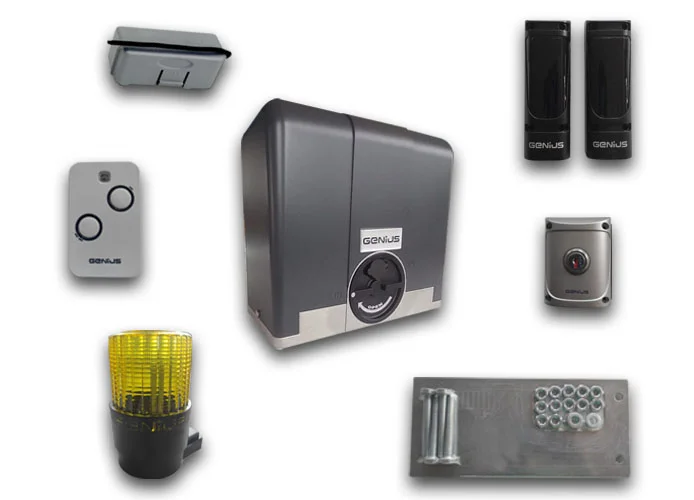

IT INCLUDES:
- 1 6110080: Electromechanical operator blizzard enc 400 (with sprint 24 control board and integrated encoder and lock-protected release)
- 1 737000: Foundation plate for blizzard
- 1 6100148: Vega bus photocells
- 1 6100332: 2-channel transmitter kilo tx 2 868 mhz
- 1 JA31101: Quick 1 key-operated selector
- 1 6100347: Rqfz 868 mhz frequency module
- 1 6100316: Guard flashing led lamp 24v
- 1 Warning sign
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELECTRICAL MOTOR (V): 24
- NOMINAL POWER (W): 140
- MAX. THRUST (N): 310
- PINION TYPE: Z16 MOD.4
- LEAF SPEED (M/MIN): 12
- OPERATING FREQUENCY: CONTINUOUS
- OPERATING TEMPERATURE (°C): -20 +55
- DEGREE OF PROTECTION: IP44
