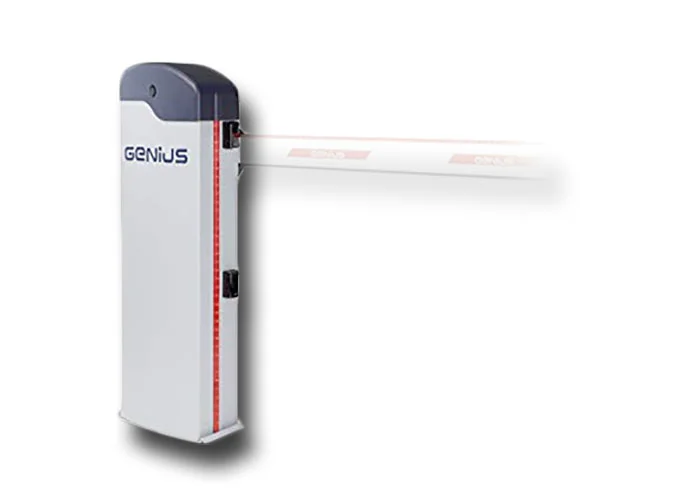

GENIUS IRREVERSIBLE FAST AUTOMATIC BARRIER WITH ENCODER AND LYNX 07 INTEGRATED
BAR UP TO 3MT (NOT INCLUDED)
AUTOMATIC ROD BALANCING BY MEANS OF 1 OR 2 SPRINGS OF YOUR CHOICE
LUMINOUS WARNING BEACON FOR BARRIER HOUSING
ERGONOMICALLY POSITIONED AND EASILY ACCESSIBLE CONTROL PANEL
EQUIPPED WITH ENCODER FOR OBSTACLE DETECTION
USER-FRIENDLY ROTARY RELEASE WITH CUSTOMISED KEY
CERTIFIED FOR CONTINUOUS USE FOR MORE THAN 1.000.000 OPERATIONS
ACCESSORIES NOT INCLUDED
ROD AND FOUNDATION PLATE NOT INCLUDED
RAINBOW FAST 324 C 6130037
24V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230/115
- ELECTRIC MOTOR (V): 24
- MAXIMUM STARTING POWER (W): 280
- RATED MOTOR POWER (W): 160
- MAX. TORQUE AT 24VDC (NM): 155
- NOMINAL OPERATING TORQUE (NM): 30
- NOMINAL OPEN/CLOSE TIME (SEC):¹ DA 2 A 3
- OPERATING FREQUENCY AT 20°C: 70%
- OPERATING TEMPERATURE (°C): -20 +55
- NOISE (DBA): >70
- DEGREE OF PROTECTION: IP54
- OPERATOR WEIGHT (KG): 66
Complementary accessories (not included):
- 6100294: Foundation plate
- 6100201: Kit of 6 GENIUS logo stickers
