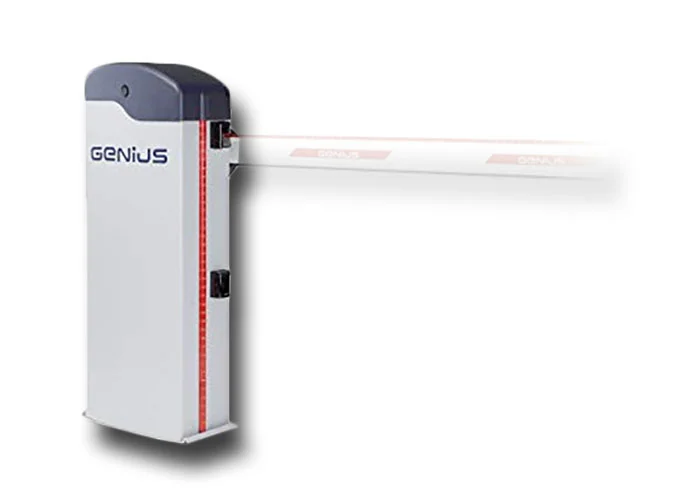

RAINBOW 524 C 6130034
24VTECHNICAL DETAILS:
- POWER SUPPLY (V): 230/115
- ELECTRIC MOTOR (V): 24
- MAXIMUM STARTING POWER (W): 280
- RATED MOTOR POWER (W): 160
- MAX. TORQUE AT 24VDC (NM): 140
- NOMINAL OPERATING TORQUE (NM): 75
- NOMINAL OPEN/CLOSE TIME (SEC):¹ 4 TO 8
- OPERATING FREQUENCY AT 20°C: 70%.
- OPERATING TEMPERATURE (°C): -20 +55
- NOISE (DBA): >70
- DEGREE OF PROTECTION: IP54
- OPERATOR WEIGHT (KG): 66
Complementary accessories (not included):
- 6100294: Foundation plate
- 6100201: Kit of 6 GENIUS logo stickers
