FADINI - WALL-MOUNTED PROXIMITY READER FOR TRANSPONDER DEVICES
- DEFINITIONS OF UTILITIES ON THE READER WITH PROGRAMMING CARDS
- EQUIPPED WITH A MINI-USB INPUT FOR MEMORY READING
- ZERO.SAPE BOX INTERFACE
- 4000-USER REMOVABLE MEMORY
- ABS BODY WITH WEATHER RESISTANCE
- WHITE LED LIGHT FRAME.

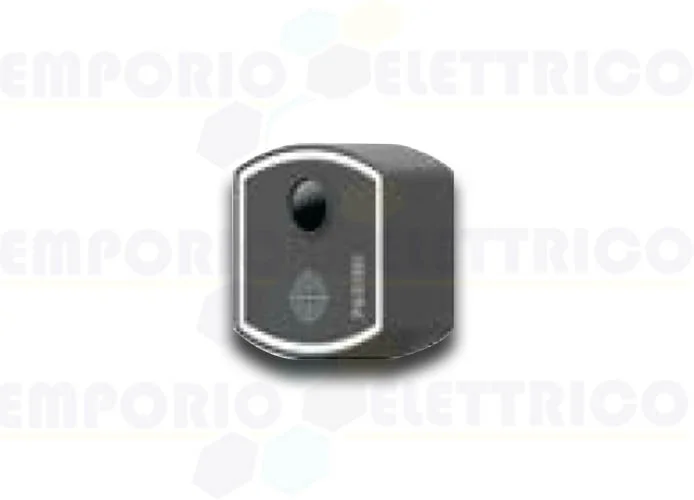

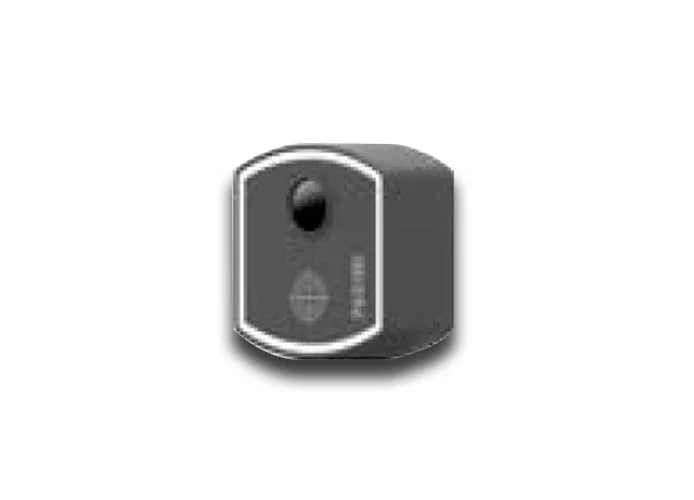

WALL-MOUNTED PROXIMITY READER FOR TRANSPONDER DEVICES ZERO.SAPE
148L
RECEIVER POWER SUPPLY (Vac - Hz): 230 - 50
READER POWER SUPPLY (Vac/dc): 12
MAX. ABSORPTION READER (mA): 60
MAX. ABSORPTION RECEIVER (mA): 10
WORKING TEMPERATURE (°C): -20 ÷ +60
COMMUNICATION DISTANCE (m): MAX 100
READER DEGREE OF PROTECTION IP: 54
MEMORY (UTILITIES): 4000.
