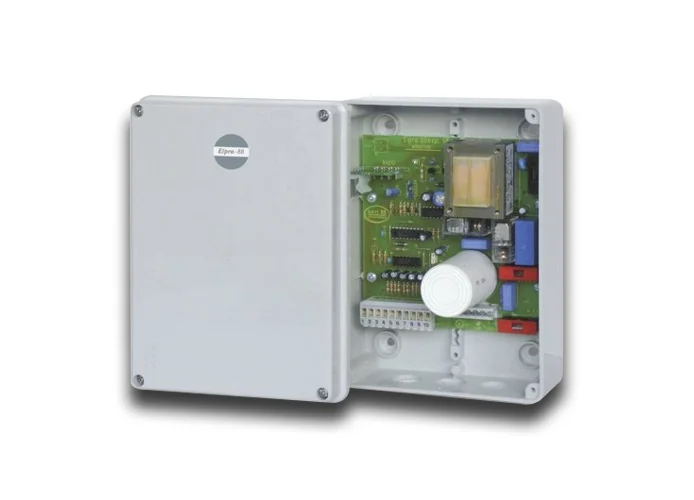

FADINI - ELECTRONIC PROGRAMMER CONTROL BOARD ELPRO 88 EXP 2431L
- COMPATIBLE WITH BARRI 88
- FUNCTIONS OF RADIO BOARD INSERTION, PHOTOCELL CONNECTION, LOW AND HIGH VOLTAGE FUSES AND AUTOMATIC RECLOSURE.
FADINI ELECTRONIC PROGRAMMER CONTROL BOARD ELPRO 88 EXP
2431L
BOARD POWER SUPPLY 1PH (Vac - Hz): 230 - 50
MAX. MOTOR POWER (W): 400
DEGREE OF PROTECTION: IP 56
OPERATING TEMPERATURE (°C): -20 / +55
PHOTOCELL / SELECTOR / RADIO RECEIVER OUTPUT (Vac - mA): 24 - 500
FLASHING LIGHT OUTPUT (Vac - W): 230 - 25
WORKING TIME. (s): 60.
