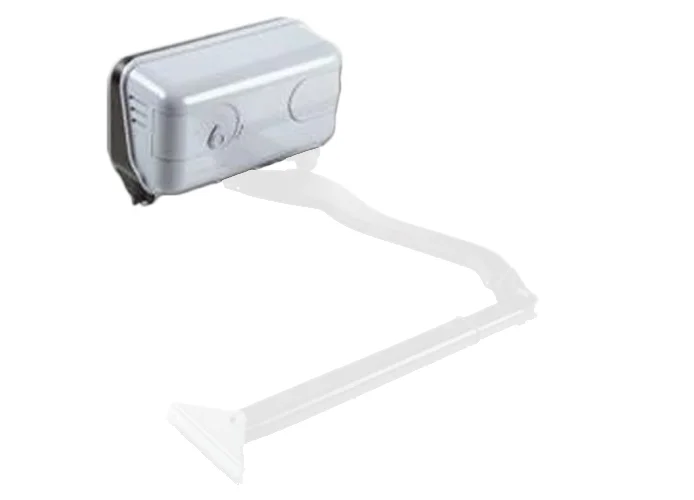

FADINI - OUTDOOR HYDRAULIC AUTOMATION FOR SWING GATES WITH LARGE PILLARS
- SUITABLE FOR RESIDENTIAL AND COLLECTIVE, SEMI-INTENSIVE USE
- EQUIPPED WITH BIDIRECTIONAL HYDRAULIC BLOCK
- ANTI-CRUSHING SAFETY GUARANTEED BY THE BY-PASS VALVES ON THE ACTUATOR
- ACCESS TO THE RELEASE WITH KEY
- COMPLETE WITH COVER, FIXING BRACKET, 2 CODED RELEASE KEYS.
MAX LEAF LENGTH 2 Mt
MAX LEAF WEIGHT 400 Kg
ARTICULATED ARM 283L NOT INCLUDED
APROLI 280 BATT
282L
230V AC
TECHNICAL DATA
- MAINS SUPPLY (VAC - HZ) 230 - 50
- ABSORBED POWER (W) 250
- ABSORBED CURRENT (A) 1.2
- OUTPUT POWER (KW / HP) 0.18 / 0.25
- WORKING TORQUE (NM) 220 - 300
- 205° SHAFT ROTATION
- OPENING TIME (S) 23
- OPERATING TEMPERATURE (°C) -20 ÷ +80 [F].
- DEGREE OF PROTECTION IP 67
- OIL TYPE 708L
- WEIGHT WITH ONE ARM (KG) 15
- FREQUENCY OF USE SEMI-INTENSIVE USE
