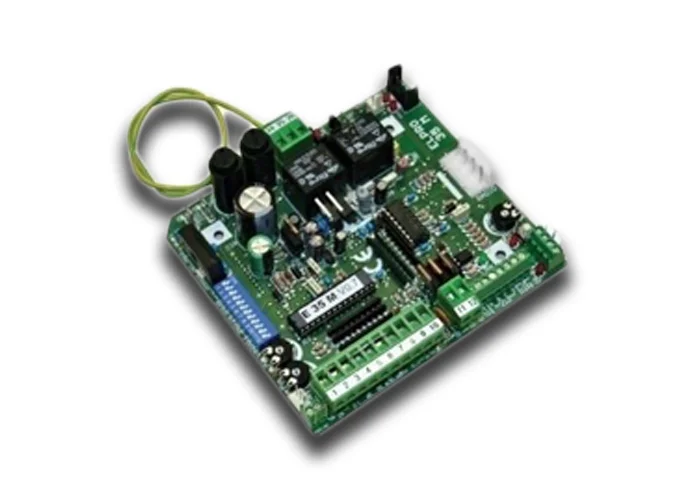

FADINI - ELECTRONIC BOARD ELPRO 35 M
CONTROL UNIT FOR BART 350 MASTER
STROKE MANAGEMENT WITH SELF-LEARNING, SLOWING DOWN, REVERSAL ON IMPACT WITH OBSTACLE, READY FOR CONNECTION TO ELPRO 35S, SLAVE CARD.
GREEN/RED DIAGNOSTICS LEDS FOR EASY EVALUATION OF AUTOMATION STATUS.
ELPRO 35 M 3518L
24 V DC
TECHNICAL DETAILS
Single-phase board power supply: 230 V ±10% 50 Hz
Max motor power: 200 W
Courtesy light output: 24 V - 50 mA max.
Photocells/selector/receiver radio output: 24 Vdc - 500 mA max
Signal light output: 24 V - 1 W
DSA control output: 24 V dc
Flashing output: 24 V dc
Pause time: 1 - 120 s
Operating temperature: -20 °C +55 °C
