FADINI - ELECTRONIC CARD FOR ELPRO XE SWING GATES
UNIVERSAL CONTROL UNIT, COMPLETE WITH OUTDOOR CONTAINER.
SINGLE-PHASE UNIVERSAL CONTROL UNIT FOR SWING, SLIDING AND UP-AND-OVER GATES, AUTOMATIC OR SEMI-AUTOMATIC OPERATION, COURTESY LIGHT, DIAGNOSTICS LED, DEAD MAN'S PRESENCE, STEP-BY-STEP, PEDESTRIAN GATE, INPUT CONNECTION FOR ELECTRIC LOCK, RADIO CARD CONNECTION, PHOTOCELL CONNECTION, OPEN-STOP-CLOSE PUSH-BUTTON PANEL, TORQUE REGULATOR FOR ELECTROMECHANICAL OPERATORS.

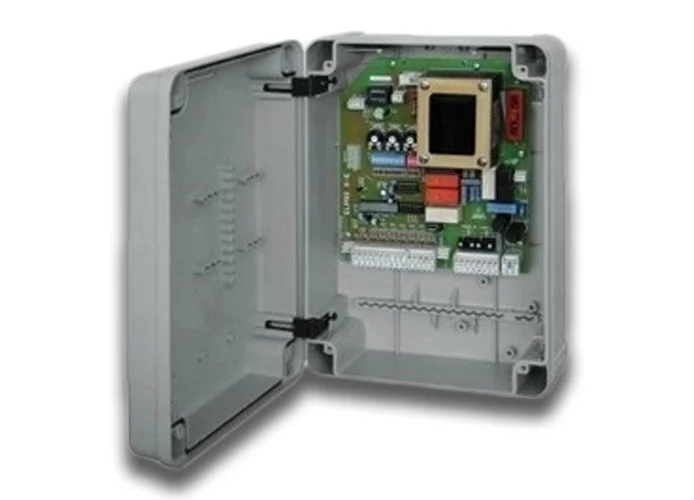

(THE PICTURE IS INDICATIVE AND COULD BE DIFFERENT FROM THE REAL PRODUCT)
ELPRO XE 7271L
230 V AC
TECHNICAL DETAILS
Single-phase board power supply: 230 V ±10% 50 Hz
Max motor power: 750 W
Courtesy light output: 230 V - 100 W max
Photocells/selector/receiver radio output: 24 Vac
Signal light output: 24 V - 3 W max
DSA control output: 24 Vac
Flashing output: 230 V - 25 W max
Working cycle: 0 - 120 s (sliding gates) / 0 - 60 s (swing gates)
Pause time: 1 - 220 s
Door closing delay time: 0 - 10 s
Pedestrian open time: 1 - 30 s
Box dimensions: 210 x 295 x 110 mm
Degree of protection: IP 64
Operating temperature: -20 °C +55 °C
