FADINI - THREE-PHASE ELECTROMECHANICAL OPERATOR FOR SLIDING AND INDUSTRIAL GATES
COMPLETE WITH OUTDOOR CONTAINER
FOR FIBO 300 / FIBO 400

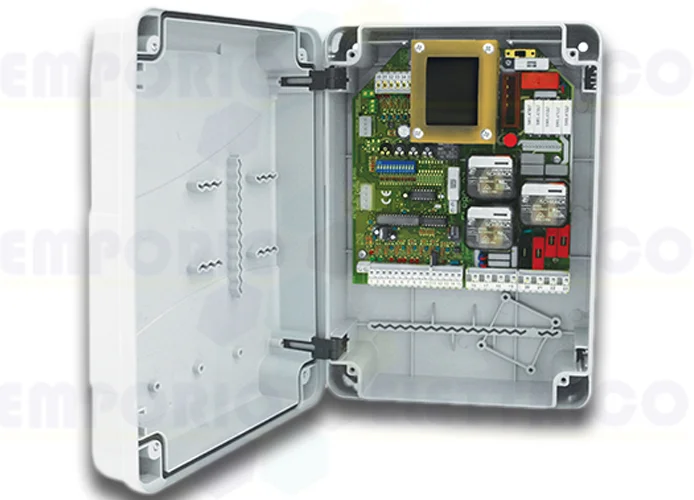

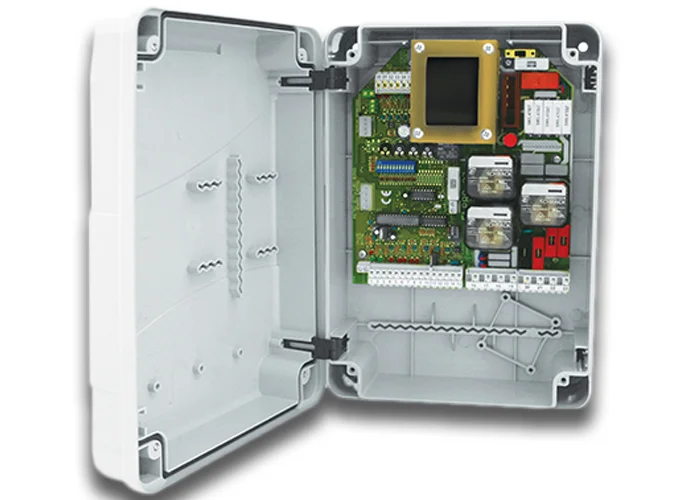

(THE PICTURE IS INDICATIVE AND COULD BE DIFFERENT FROM THE REAL PRODUCT)
ELPRO 37 HP 7185L
400V AC
TECHNICAL DETAILS
Single-phase board power supply: 230 V ±10% 50/60 Hz
Three-phase board power supply: 400 V ±10% 50/60 Hz
Max motor power: 700 W single-phase - 1200 W three-phase
Courtesy light output: Relè 12 vac
Photocells/selector/receiver radio output: 24 Vac
Signal light output: 24 V - 3 W max
DSA control output: 24 Vac
Flashing output: 230 V - 25 W max
Working cycle: 0 - 120 s
Pause time: 1 - 220 s
Pedestrian open time: 1 - 45 s
Box dimensions: 210 x 295 x 110 mm
Degree of protection: IP 64
Operating temperature: -20 °C +55 °C
