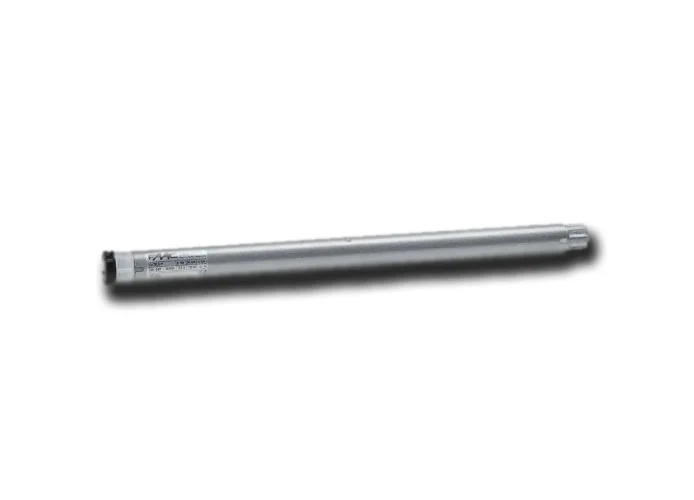

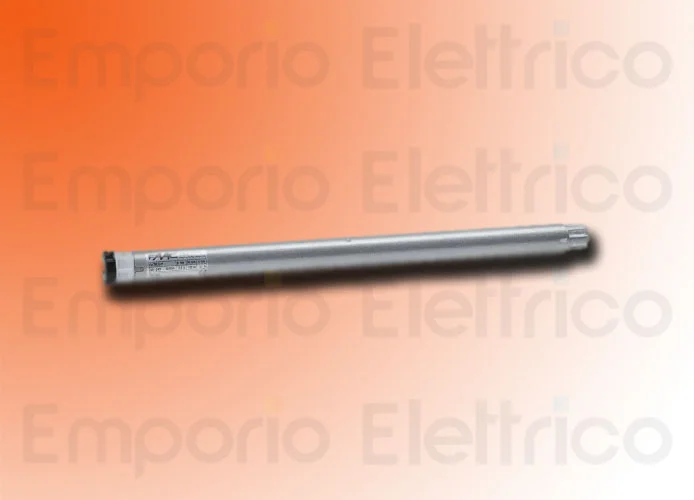

FAAC - TUBULAR MOTOR TM2 35 PP 09/16_OCTO40_1PC WITH AUTOMATIC LIMIT SWITCH ADJUSTMENT (PLUG&PLAY) FOR APPLICATION ON ROLLER SHUTTERS WITH PUSH-BUTTON CONTROL
MAX COUPLE 9 NM
MAX. SPEED 16 RPM
LIFTING CAPACITY UP TO 24 KG.
1412011
Continuous use time (ROT) 4 min
Mains supply voltage 230 V 50 Hz
Max. power 120 W
Max. stroke unlimited
Motor diameter 35 mm
Length with adapter (L) 547 mm
Degree of protection IP44.
