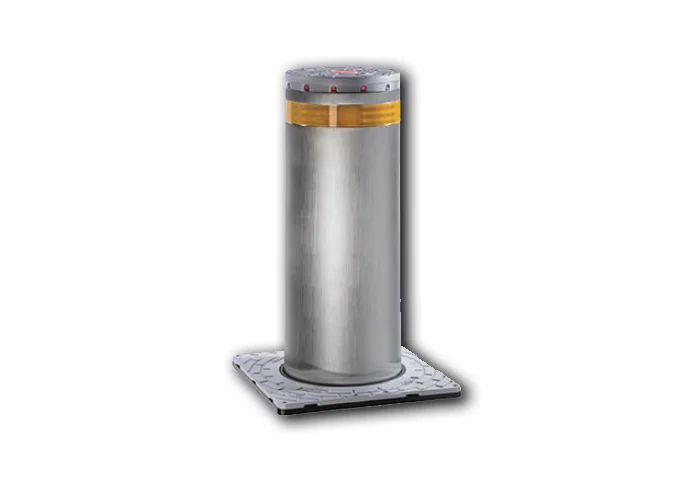

FAAC - AUTOMATIC RETRACTABLE BOLLARD FOR PERIMETER PROTECTION
THIS AUTOMATIC BOLLARD IS RECOMMENDED FOR CONTROLLING VEHICLE TRAFFIC AND PERMANENTLY PROTECTING THE PERIMETER OF SENSITIVE SITES
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- SIMPLIFIED MAINTENANCE
- HEIGHT 800MM
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
- TAMPER-PROOF HEADER; PROTECTED BY ARMOURED LOCK WITH CODED KEY (TO PREVENT UNAUTHORISED ACCESS)
- CAPABLE OF STOPPING A 6,800KG TRUCK GOING AT 50KM/H
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY MANUAL LOWERING RELEASE KEY (1PC)
- ENCRYPTED KEY TO ACCESS THE MANUAL LOWERING MECHANISM
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA 2K H800 INOX
116431
| Actuator type | Hydraulic actuator |
| Cylinder height above ground | 800 mm |
| Cylinder diameter | 275 mm |
| Cylinder treatment type | Satin-finished Aisi 316 stainless steel | |
| Reflective band height | 55 mm |
| Standard reflective band colour | White |
| Climbing time | ~8 s |
| Descent time | ~4,5 s |
| Emergency lowering device | YES (excludable) |
| Emergency lowering time | ~2 s |
| Lifting obstacle detection | YES (excludable) |
| Release device | YES |
| Slowing down | YES |
| Mains supply voltage | 220-240V – 50/60Hz |
| Maximum power | 575 W (*) |
| Hydraulic unit degree of protection | IP67 |
| Type of use | Use in security |
| Breaking resistance | 673.000 J in double units |
| Cockpit weight | 100 kg |
| Bollard weight | 158 kg |
| Ambient operating temperature | -15°C / +55°C |
| Ambient operating temperature with heater | -25°C / +55°C |
| Load class (EN 124) | C250 (25t) |
