FAAC - OIL-HYDRAULIC GEARMOTOR FOR SWINGING GATES WITH LEAFS UP TO 1.8 M. FOR RESIDENTIAL APPLICATION
- SUITABLE FOR RESIDENTIAL USE
- SMALL FOOTPRINT IDEAL FOR INSTALLATION IN SMALL SPACES
- HIGH RESISTANCE TO ATMOSPHERIC CORROSION

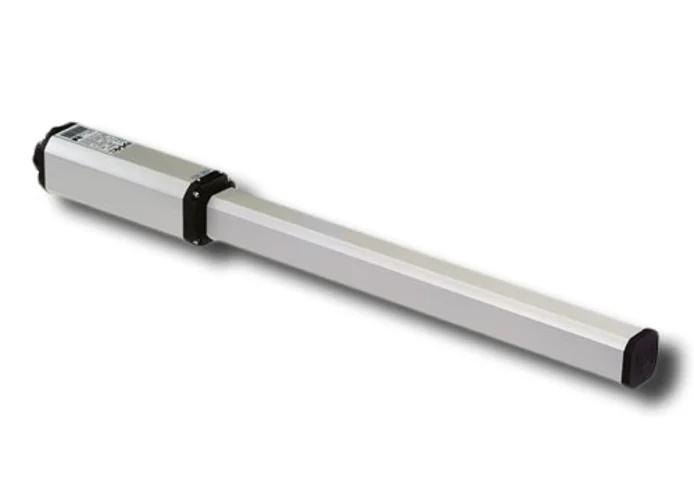

ACTUATOR 402 CBC
104468
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 Hz
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX THRUST: 5000 N (*)
- MAX SPEED ROD: 13 MM/S (*)
- MOTOR-PUMP UNIT: 1 LPM (*)
- ROD STROKE: 250 MM
- MAX OPENING ANGLE LEAF: 110°
- OPERATING TEMPERATURE: -20°C ÷ + 55°
- THERMOPROTECTION: 120°C
- DEGREE OF PROTECTION: IP55
- USE FREQUENCY: 55 CYCLES/HOUR
- MAX LEAF WIDTH: 1,80 M
- OIL TYPE: FAAC HP OIL
- SIZES (LXPXH): 959 X 85 X 85
- ELECTRONIC EQUIPMENT: NOT INCLUDED
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- wall plate 737604
- additional unlocking key 713002
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- fittings for conduits RTA 710010
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
