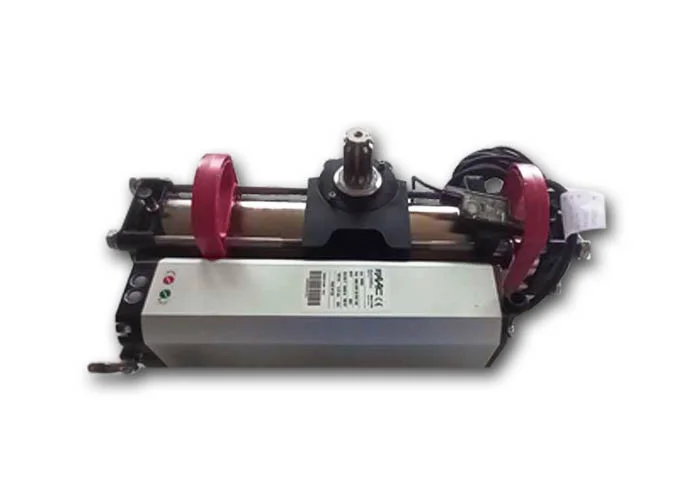

faac oil-hydraulic actuator s800 enc cbac 180° 230v 108801

FAAC - UNDERGROUND OIL-HYDRAULIC GEARMOTOR FOR SWING DOORS FOR RESIDENTIAL USE, UP TO 2 M PER LEAF AND 800 KG OF WEIGHT

- ADATTO PER USO RESIDENZIALE E CONDOMINIALE
-OPENING 180°, NEW MODEL WITH ENCODER
- WITH HYDRAULIC LOCK ON OPENING/CLOSING PHASES
- UNDERGROUND OPERATOR WITH 230V HYDRAULIC TECHNOLOGY
- ABSOLUTE MAGNETIC ENCODER WITH INTEGRATED 2easy BUS (CONNECTION TO 2 POLARISED CABLES)
- INTEGRATED POSITIVE STOPS, POSSIBILITY OF AVOIDING THE INSTALLATION OF MECHANICAL STOPS (FAAC PATENT)

S800 ENC CBAC 180°  108801

230V AC

Complementary accessories (not included):
- electronic board E045S 790077
- electronic board E045S LC 790079
- electronic board E145S LC 790306
- container mod. E for electronic boards 720119
- foundation box 490112
- stainless steel foundation box 490113
- release lock with customised key from n.1 to n.36 71209101/36
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- hydraulic release device (to be used with the code 390972) for operators CBAC or SBW 390035
- splined joint group kit (to be used with 390035) for CBAC or SBW operators 390972
- S800 welded shoe kit (welding according to UNI EN ISO 15614-1) 490187
